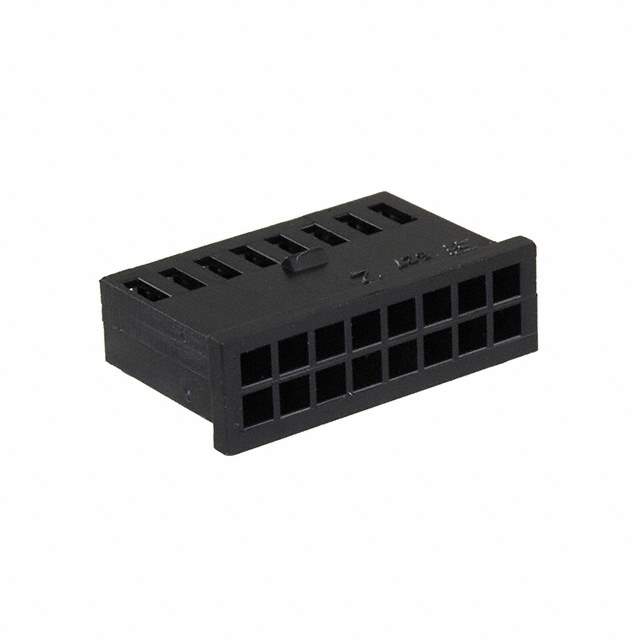

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity
Series AMPMODU Mod II
Package Bulk
Product Status Active
Connector Type Receptacle
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Note Contacts Not Included
Base Product Number 2803
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 850064-280366
Ultra Librarian 3D Model Ultra Librarian 280366 CAD Model

Description

The AMPMODU Mod II series rectangular connector housings are a reliable and versatile solution for electronic applications. Bold: AMPMODU Mod II series and TE Connectivity.

  • Positions: 16
  • Number of Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Connector Type: Receptacle
  • Termination: Crimp
  • Fastening Type: Locking Ramp
  • Mounting Type: Free Hanging (In-Line)
  • Manufacturer: TE Connectivity
  • Product Status: Active
  • Standard Package: 1,000 pieces
