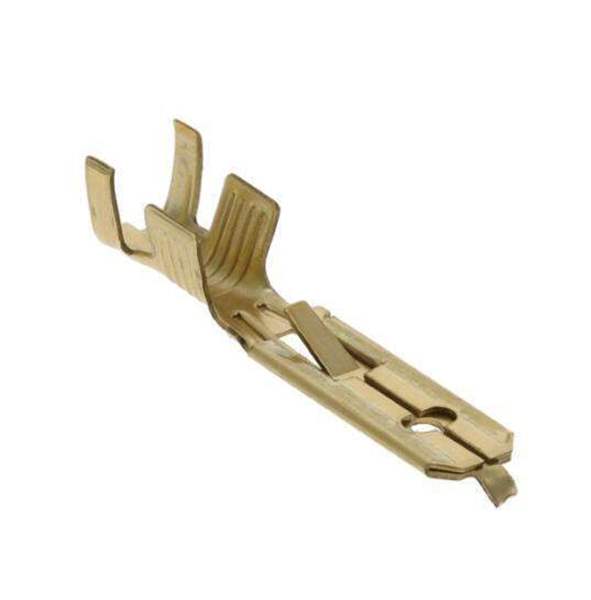

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Standard
Gender Male
Tab Thickness 0.032" (0.81mm)
Tab Length 0.618" (15.70mm)
Length - Overall 1.102" (28.00mm)
Win Source Part Number WS1207403-280080-1
Ultra Librarian 3D Model Ultra Librarian 280080-1 CAD Model

Description

■ Direct Mating Connectors for PC Boards, 2–8 Positions, up to 6 A Current Carrying Capacity ■ Indirect Mating Connectors, 1–8 Positions, up to 16 A Current Carrying Capacity<br /> ■ Variable Keying ■ Double Wire Termination possible<br />
