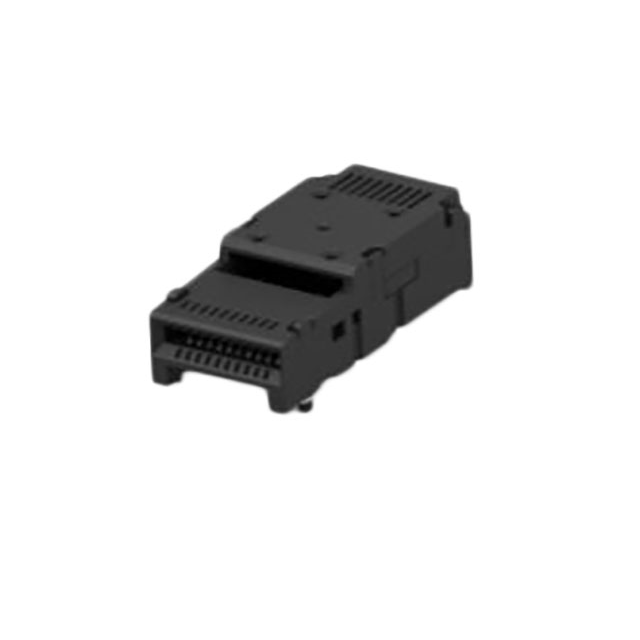

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206450-2325864-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Pluggable Connectors -Pluggable Connector Assemblies
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Style Receptacle
Connector Type SFP-DD (Double Density)
Number of Positions 40
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Ultra Librarian 3D Model Ultra Librarian 2325864-2 CAD Model

Description

This report covers the electrical, mechanical and environmental performance of TE SFP DD Receptacles. Testing was performed at the Harrisburg Electrical Components Test Laboratory (HECTL) between 25-March-2020 and 10-July-2020. Detailed test data is stored at HECTL under EA20200087T. Testing was also performed at TE Connectivity Shanghai Electrical Test Laboratory between 2020-09-30 and 2020-12-15. The associated test number is TP-20-02186.
