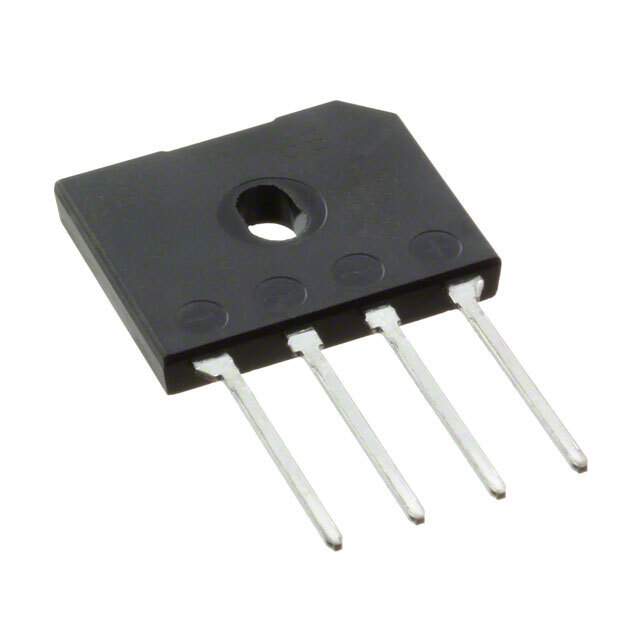

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 4A
Current - Reverse Leakage at Vr 5μA at 400V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177025-GBU4G
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian GBU4G CAD Model

Description

The GeneSiC Semiconductor GBU4G is a single-phase standard diode with a peak reverse voltage of 400V and an average rectified current of 4A.

  • Peak Reverse Voltage: 400V
  • Average Rectified Current: 4A
  • Voltage Forward: 1.1V @ 4A
  • Reverse Leakage Current: 5μA @ 400V
  • Package: 4-SIP, GBU package
  • Temperature Range: -55°C to 150°C
  • Common Use: power management
  • Manufacturer: Panjit in Taiwan
  • Popularity: medium
  • Supply and Demand: balanced
  • Manufacturer Pack Quantity: 500
