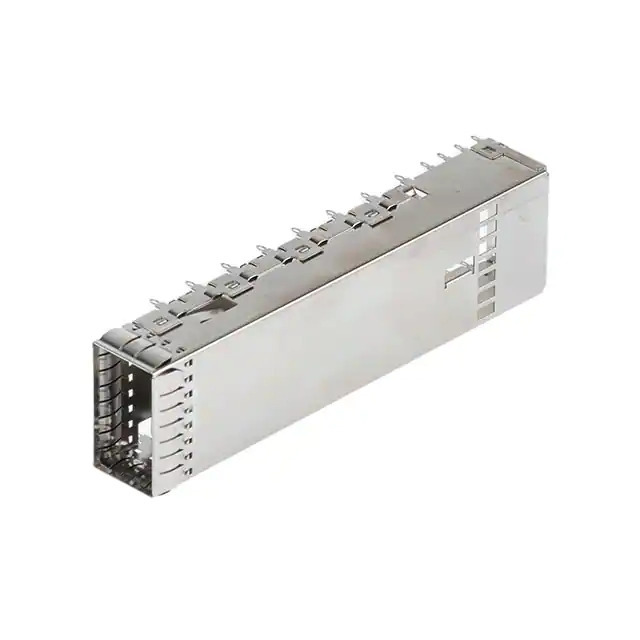

2317416-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2317416-1

Part No 2317416-1
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN OSFP CAGE PRESS-FIT R/A / Position OSFP Cage Connector Press-Fit Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Cage
Connector Type OSFP
Number of Positions -
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Contact Finish -
Contact Finish Thickness -
Base Product Number 2317416
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1364252-2317416-1
Ultra Librarian 3D Model Ultra Librarian 2317416-1 CAD Model

Description

The 1364252-2317416-1 is a pluggable connector assembly from TE Connectivity AMP Connectors.

  • Category: Connectors, Interconnects
  • Feature: EMI Shielded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Press-Fit
  • Connector Type: OSFP
  • Package: Tray
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
  • Contact Finish: Not Specified
  • Contact Finish Thickness: Not Specified
  • Number of Positions: Not Mentioned
  • Product Status: Active
