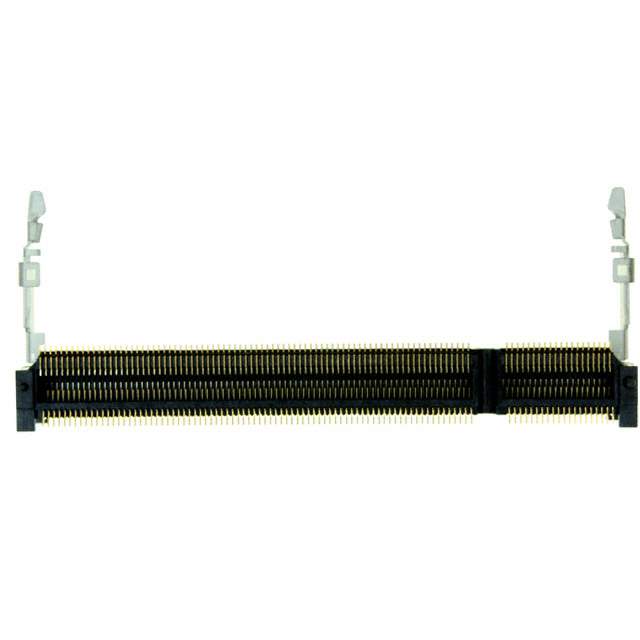

2309409-1 Real Image
Same model may have multiple batches, images only for reference.

2309409-1

Part No 2309409-1
Manufacturer TE Connectivity
Catalog Memory Connectors - Inline Module Sockets
Description DDR4 SODIMM 260P 5.2H STD / 260 Position SODIMM DDR4 SDRAM Socket Surface Mount, 25° Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>Inline Module Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Style SODIMM
Number of Positions 260
Memory Type DDR4 SDRAM
Mounting Surface Mount, 25° Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 2309409
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -2309409-1-SI,A126760CT,A126760TR
Standard Package 400
Win Source Part Number 1332038-2309409-1
Ultra Librarian 3D Model Ultra Librarian 2309409-1 CAD Model

Description

The TE Connectivity AMP Connectors inline module socket is a surface-mount socket with a 25° angle and 260 positions.

  • Angle: 25°
  • Positions: 260
  • Mounting Type: Surface Mount
  • Connector Style: SODIMM
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Standard Package: 400
  • Features: Board Guide, Latches
  • Memory Type: DDR4 SDRAM
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • ROHS3 Compliant: Yes
