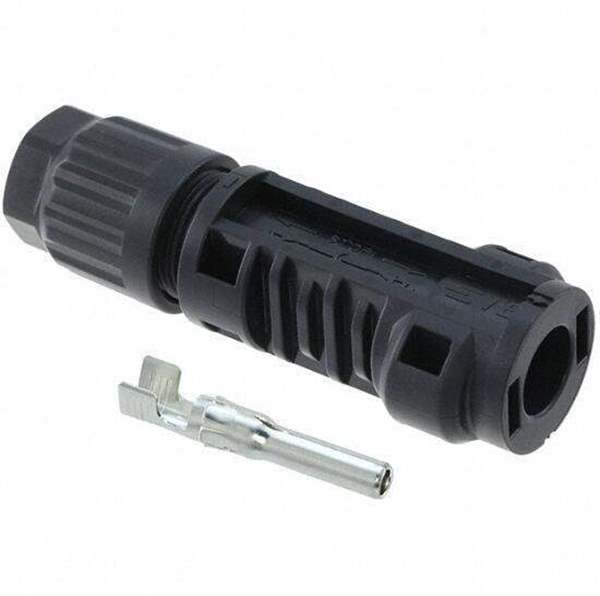

2270024-1 TE Energy & Utilities
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Energy & Utilities
Category Connectors, Interconnects Photovoltaic (Solar Panel) Connectors Photovoltaic (Solar Panel) Connector Assemblies
Series Solarlok PV4-S
Package Bag
Product Status Obsolete
Type Male Coupler
Coded, Keyed Minus
Features 10 ~ 12 AWG
Win Source Part Number WS1207046-2270024-1
Ultra Librarian 3D Model Ultra Librarian 2270024-1 CAD Model

Description

The SOLARLOK Z-Rail enhanced junction box terminates the foils of crystalline PV panels with clamped connections while supporting voltage ratings of 1500V for UL3730 and 1500V for IEC62790. The SOLARLOK Z-Rail enhanced junction box for 1500V applications is manufactured with durable materials that reduce the stress on individual components, extend the life of the product and increase reliability. The junction box provides a flexible, open system structure, which allows serial or parallel interconnection via a direct wire connection or separable connectors.
