Part No 223396
Manufacturer TE Connectivity
Catalog Backplane Connectors

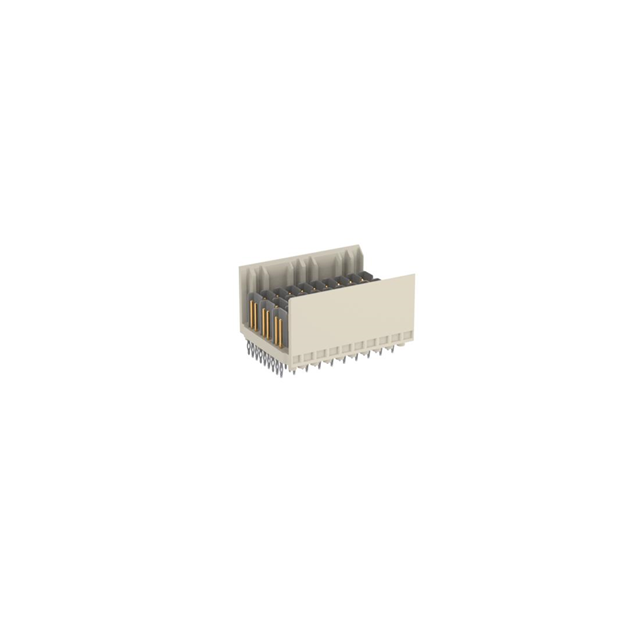

Description ZD M 3-10 30POS 2.5MM / 90 Connector Header, Male Pins Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity Erni
Series ERMET ZD
Package Tray
Product Status Obsolete
Connector Type Header, Male Pins
Number of Positions 90
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 9
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 60 Signal, 30 Ground
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Standard Package 64
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351776-223396
Ultra Librarian 3D Model Ultra Librarian 223396 CAD Model

Description

The TE Connectivity Erni 1351776-223396 is a header connector designed for use in specialized backplane connectors and manufactured by TE Connectivity Erni.

  • Package: Tray
  • Category: Connectors
  • Series: ERMET ZD
  • Positions: 90
  • Pitch: 0.098 inches
  • Connector Gender: Male
  • Positions Loaded: All
  • Number of Rows: 9
  • Termination Type: Press-Fit
  • Contact Finish: Gold
  • Package Quantity: 64
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8536.69.4040
