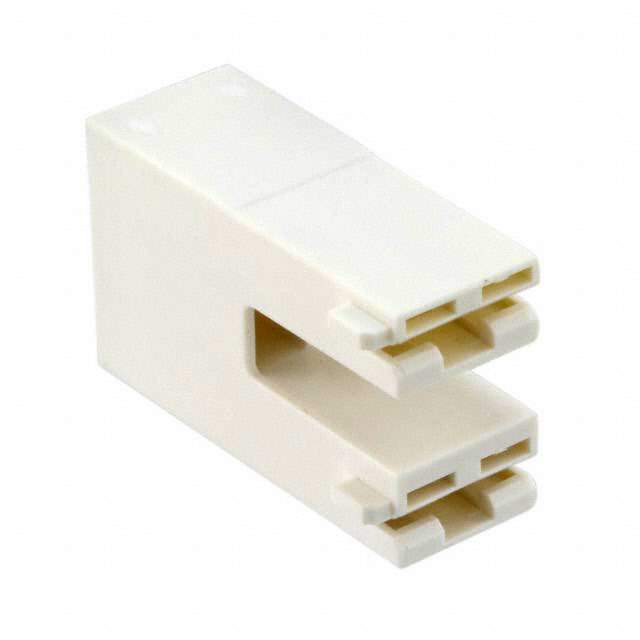

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Housings, Boots
Mfr TE Connectivity
Series Mark III
Package Bulk
Product Status Obsolete
Style Housing
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.250" (6.35mm)
Number of Positions 2
Stacking Direction Top to Bottom
For Use With/Related Products 0.250" (6.35mm) Quick Connects
Mounting Type Free Hanging (In-Line)
Color Natural
Material Polyamide (PA6), Nylon 6
Note Contacts Not Included
Base Product Number 2178234
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Standard Package 1 pcs
Win Source Part Number 1380668-2178234-3
Ultra Librarian 3D Model Ultra Librarian 2178234-3 CAD Model

Description

The 1197805 is a female receptacle housing designed for use with 0.250" (6.35mm) quick connects. It is part of the Mark III series and has 2 positions.

  • Terminal Type: Receptacle, Female
  • Tab Size: 0.250" (6.35mm)
  • Series: Mark III
  • Number of Positions: 2
  • Material: Polyamide (PA6), Nylon 6/6
  • Mounting Type: Free Hanging (In-Line)
  • Contact Material: -
  • Color: Natural
  • Status: Obsolete
  • REACH Status: REACH Affected
  • HTSUS Code: 8538.90.6000
  • Manufacturer: TE Connectivity
