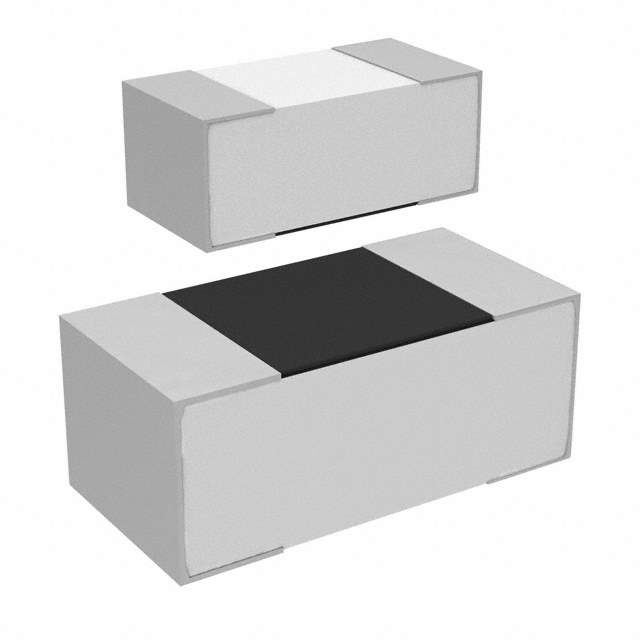

2176074-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel (TR)
Resistance 6.34 kOhms
Tolerance ±0.5%
Power (Watts) 0.03W, 1/32W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.023" L x 0.011" W (0.58mm x 0.29mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
Base Product Number 2176074
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names CPF0201D6K34C1-ND,CPF0201D6K34C1
Standard Package 1,000
Win Source Part Number 959733-2176074-5
Ultra Librarian 3D Model Ultra Librarian 2176074-5 CAD Model

Description

Win Source's 959733-2176074-5 is a chip resistor that falls under the category of Resistors.

  • Manufacturer: Win Source
  • Part Number: 959733-2176074-5
  • Product Category: Resistors
  • Series: CPF and Neohm
  • Package: Tape and Reel
  • Height: 0.010''
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±50ppm/°C
  • Power: 0.03W or 1/32W
  • Composition: Thin Film
  • Terminations: 2
  • Resistance: 6.34 kOhms
  • Package/Case: 0201 (0603 Metric)
  • Supplier Device Package: 0201
  • Operating Temperature: -55°C to 155°C
  • MSL Level: 1
  • HTSUS: 8533.21.0030
