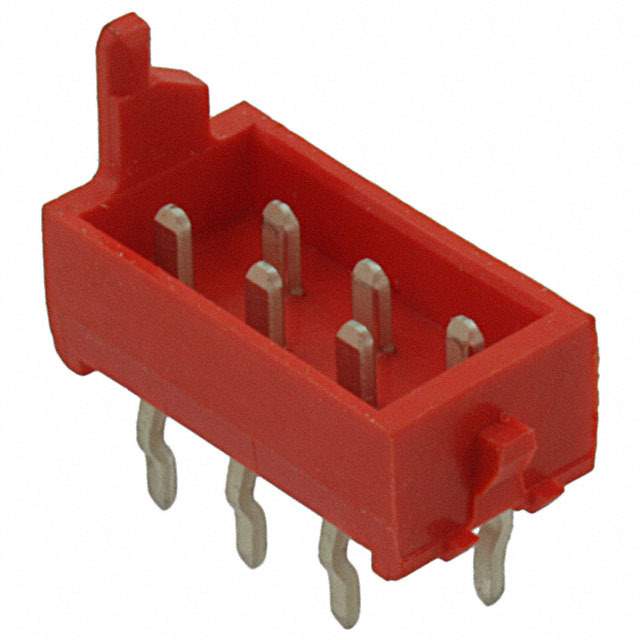

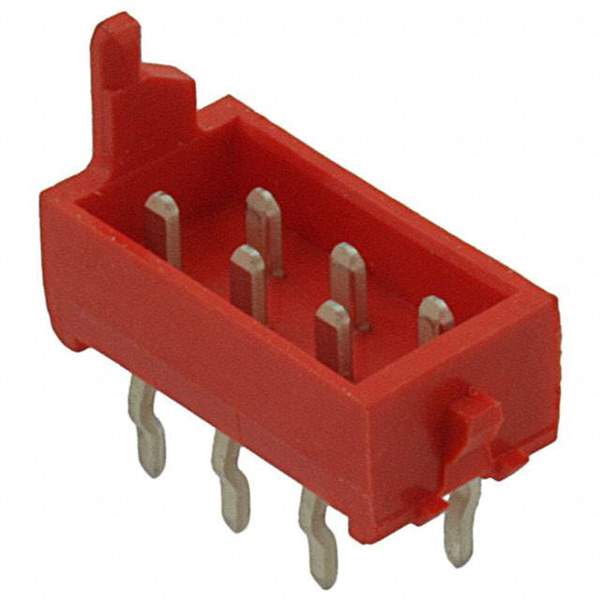

215464-6 Real Image
Same model may have multiple batches, images only for reference.

215464-6

Part No 215464-6
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Micro-MaTch
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.142" (3.60mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Red
Current Rating (Amps) 1.5A
Voltage Rating 230V
Applications General Purpose
Base Product Number 215464
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -215464-6-LSI,2154646,A107035TR,A107035CT,-215464-6-SI,215464-6-ND
Standard Package 2,500
Win Source Part Number 1141977-215464-6
Ultra Librarian 3D Model Ultra Librarian 215464-6 CAD Model

Description

The Micro-MaTch header is a 6-position rectangular connector used for board-to-board or cable connections.

  • Positions: 6
  • Design: 2-row
  • Pitch Mating: 0.100" (2.54mm)
  • Positions Loaded: all
  • Contact Material: brass
  • Contact Finish Mating: tin
  • Voltage Rating: 230V
  • Termination: press-fit and solder
  • Shrouding: 4 walls
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Flammability Rating: UL94 V-0
  • Application: general-purpose
  • Temperature Range: -40°C to 105°C
  • Package: 2,500 connectors
  • Packaging Options: Tape & Reel (TR) or Cut Tape (CT)
