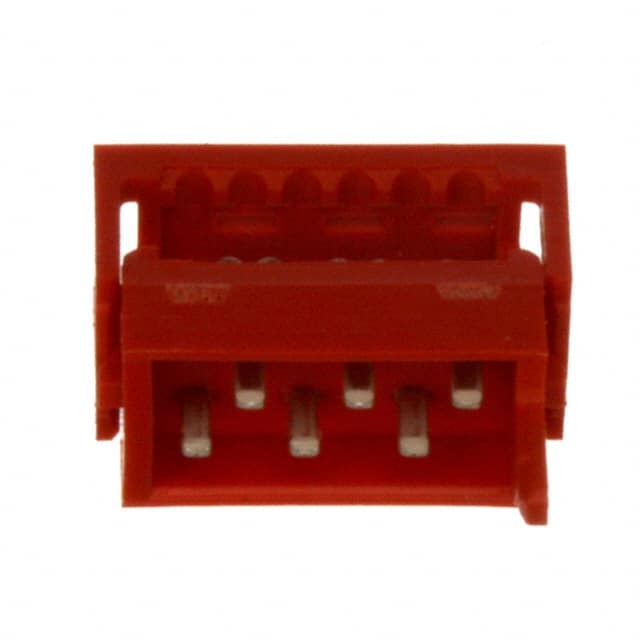

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Plug
Contact Type Male Pin
Number of Positions 8
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.059" (1.50mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through
Contact Finish Tin
Color Red
Base Product Number 215083
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 854563-215083-8
Ultra Librarian 3D Model Ultra Librarian 215083-8 CAD Model

Description

The 854563-215083-8 is a Micro-MaTch plug connector from TE Connectivity.

  • Type: Rectangular connector
  • Applications: Free hanging and panel mount
  • Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Color: Red
  • Contact Type: Male pin, feed through contacts
  • Wire Gauge: 28 AWG
  • Termination: IDC (insulation displacement contact)
  • Packaging: Tape & reel (TR) or cut tape (CT)
  • Standard Package: 2,500 pcs
  • Mounting: In-line
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor undefined
  • HTSUS Code: 8536.69.4051
  • Manufacturer: TE Connectivity
  • Product Status: Active
