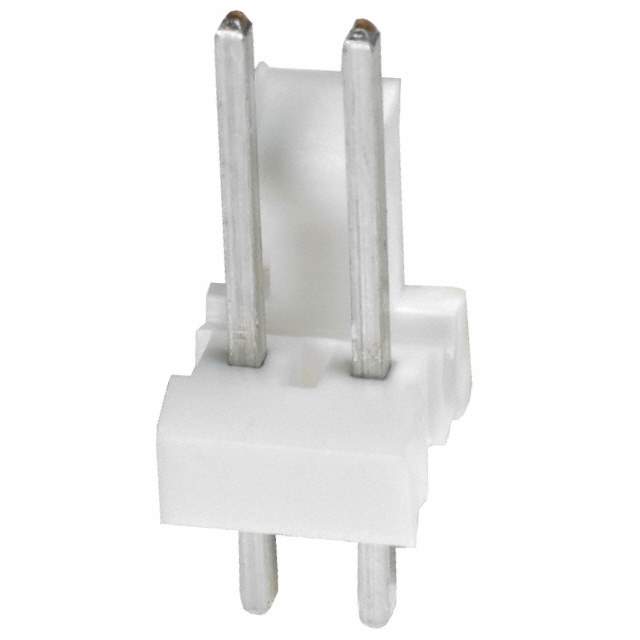

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series MTA-100
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 250VAC
Applications General
Win Source Part Number 764459-640456-2
Popularity Medium
Supply and Demand Status Limited
Family Name 640456
Introduction Date November 07, 2004
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 640456-2 CAD Model

Description

TE Connectivity AMP Connectors' 702837 is a MTA-100 series header connector with 2 positions.

  • Mounting: Through Hole
  • Temperature Range: -55°C to 105°C
  • Shrouded: Yes
  • Fastening Type: Friction Lock
  • Voltage Rating: 250VAC
  • Current Rating: Varying (Wire Gauge Dependent)
  • RoHS: Non-Compliant
  • Halogen Free: No
  • Supply/Demand Status: Limited
