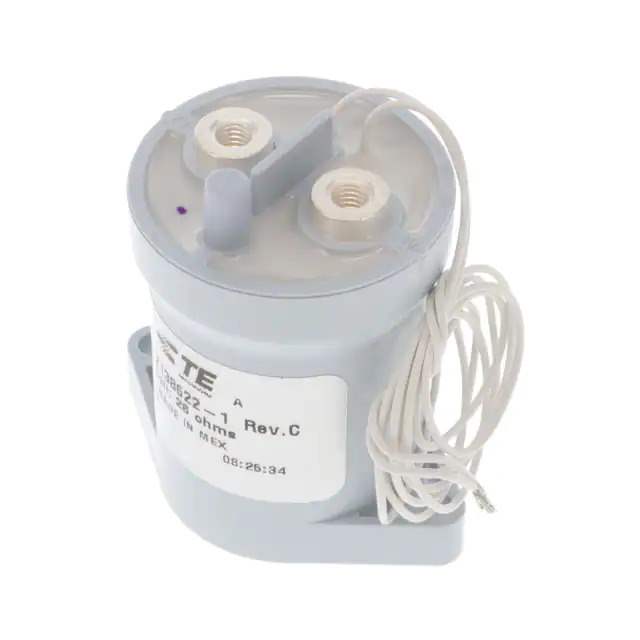

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr TE Connectivity
Series EVC 135
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 135 A
Switching Voltage 450VDC - Nom
Features Sealed - Hermetically
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 8.8 VDC
Must Release Voltage 1 VDC
Contact Material Copper
Operate Time 25 ms
Release Time 10 ms
Coil Current 461.5 mA
Coil Power 5.5W
Coil Resistance 26Ohms
Base Product Number 2138622
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 854553-2138622-1
Ultra Librarian 3D Model Ultra Librarian 2138622-1 CAD Model

Description

The EVC 135 series relay contactor is a high-quality electronic component designed for various applications.

  • Contact Form: SPST-NO (DM)
  • Contact Material: Copper
  • Contact Rating: 135 A
  • Switching Voltage: 450VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 26 Ohms
  • Operate Time: 25 ms
  • Release Time: 10 ms
  • Design: Sealed and hermetically sealed
  • Mounting: Chassis mountable
  • Temperature Range: -40°C to 85°C
