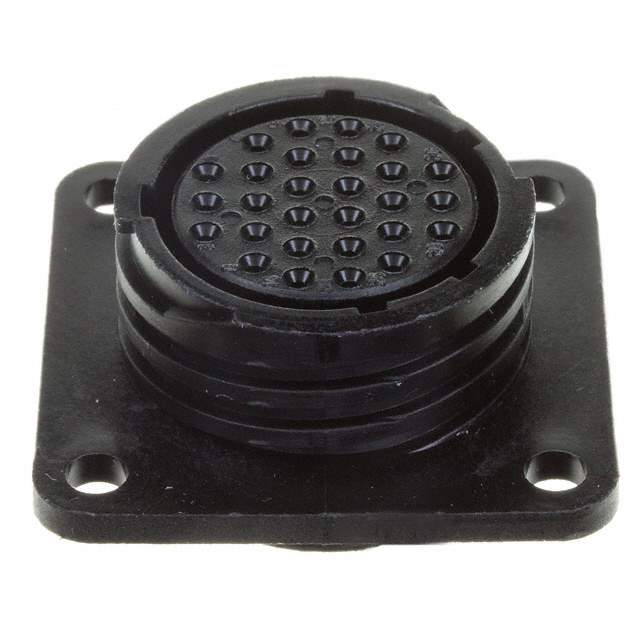

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CPC Series 2
Package Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 28
Shell Size - Insert 17-28
Contact Type Crimp
Contact Size 20
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206038
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names -206038-1-SI,2266-206038-1,-206038-1-LSI,2060381,A1378
Standard Package 100
Win Source Part Number 1024264-206038-1
Ultra Librarian 3D Model Ultra Librarian 206038-1 CAD Model

Description

The CPC series 2 connector from TE Connectivity AMP Connectors is a high-quality, 28-position circular connector designed for use in electronic circuits.

  • Positions: 28
  • Contact Gender: female sockets
  • Contact Type: crimp
  • Fastening Type: threaded
  • Mounting Feature: flange
  • Housing Material: UL94 V-0 rated thermoplastic
  • Orientation: keyed
  • Shell Size Insert: 17-28
  • Mounting: panel mounted
