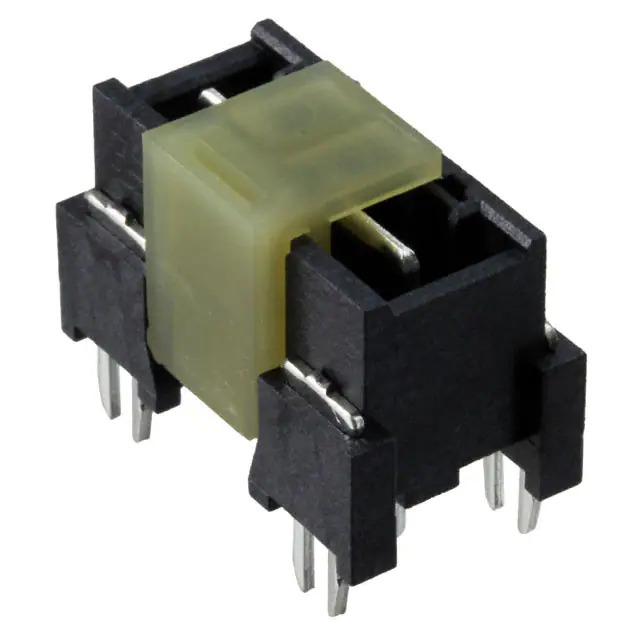

2042274-2 TE Connectivity
Same model may have multiple batches, images only for reference.

2042274-2

Part No 2042274-2
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 2POS PCB / 2 Connector Header, Male Blades Through Hole Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Elcon Mini
Package Tape & Reel (TR)
Product Status Active
Connector Usage -
Connector Type Header, Male Blades
Connector Style -
Number of Positions 2
Number of Positions Loaded All
Pitch -
Number of Rows 1
Number of Columns -
Mounting Type Through Hole
Termination Solder
Contact Layout, Typical 2 Power
Features Board Lock
Contact Finish Silver
Contact Finish Thickness 118.1µin (3.00µm)
Color Black
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Temperature Range - Operating -40°C ~ 125°C
Voltage Rating 500V
Base Product Number 2042274
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364594-2042274-2
Ultra Librarian 3D Model Ultra Librarian 2042274-2 CAD Model

Description

The TE Connectivity AMP Connectors Specialized Backplane Connector is designed for use in high-speed data transmission applications.

  • Temperature Range: -40°C to 125°C
  • Mounting Type: Through Hole
  • Compatible Series: Elcon Mini
  • Feature: Board Lock
  • Contact Finish: Silver
  • Contact Finish Thickness: 118.1µin (3.00µm)
  • Color: Black
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 500V
