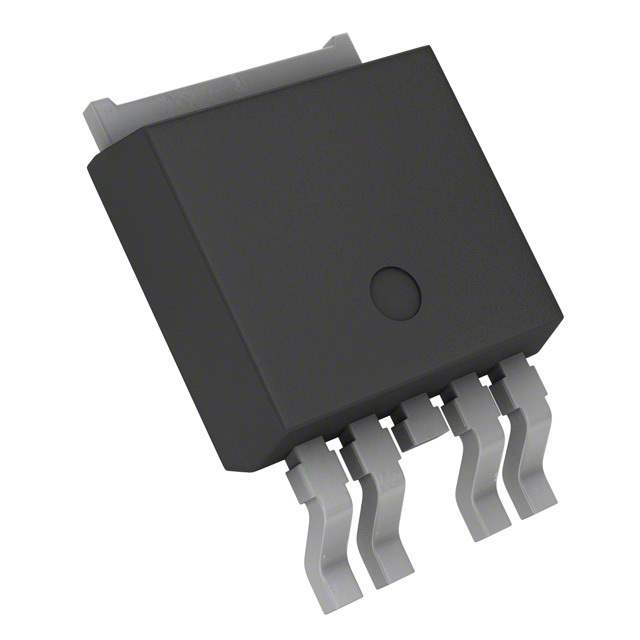

ON Semiconductor FDDS10H04A PowerTrench® MOSFET

The ON Semiconductor FDDS10H04A is a cutting-edge PowerTrench® MOSFET designed to deliver high-efficiency power conversion in a compact and robust package. This device is specifically engineered to meet the demanding requirements of modern electronic systems, offering a combination of low on-resistance and low gate charge to ensure minimal power loss and heat generation during operation.

Key Features

• Low R_DS(on): The FDDS10H04A boasts an exceptionally low on-resistance, which translates to reduced conduction losses and improved overall efficiency in power conversion applications.
• High-Speed Switching: With its low gate charge and capacitance, the FDDS10H04A enables high-speed switching, making it ideal for high-frequency power supplies and DC-DC converters.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® process technology enhances the device's performance by optimizing the cell structure for reduced voltage overshoot and lower noise levels.
• Robust Thermal Performance: The device's package is designed for excellent thermal performance, ensuring reliability and longevity even under high-temperature operating conditions.
• Environmentally Friendly: The FDDS10H04A is RoHS compliant, minimizing the environmental impact by excluding hazardous substances in its construction.

Applications

The ON Semiconductor FDDS10H04A is versatile and can be used in a variety of applications, including:

• DC-DC Converters
• Power Supplies for CPUs
• Motor Drives
• Power Management in Portable Devices
• Synchronous Rectification in AC-DC and Isolated DC-DC Converters

Package and Reliability

The FDDS10H04A comes in a robust SO-8 package that ensures a compact footprint while providing excellent thermal characteristics. This MOSFET is characterized by its high reliability, withstanding rigorous stress tests to guarantee performance under various conditions. Its design is focused on delivering long-term stability, making it a trustworthy component for any power management system.

With its blend of efficiency, speed, and durability, the ON Semiconductor FDDS10H04A PowerTrench® MOSFET is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
