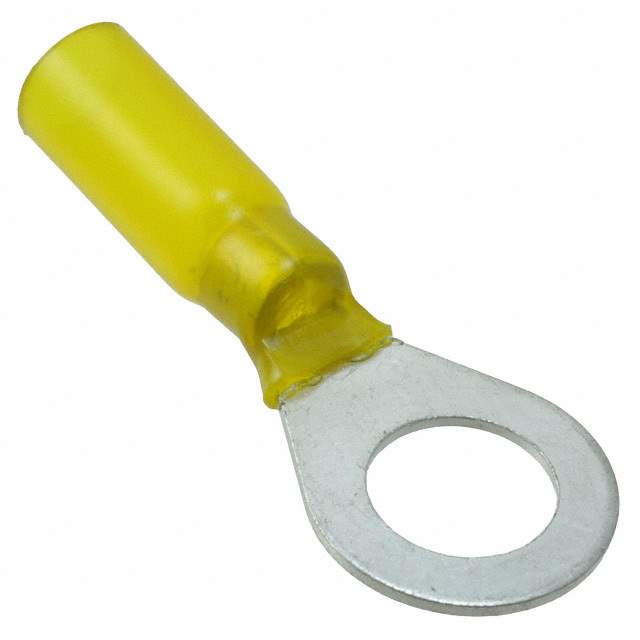

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity Aerospace, Defense and Marine
Series Dura-Seal
Package Bulk
Terminal Type Circular
Width - Outer Edges 0.710" (18.03mm)
Length - Overall 1.850" (46.99mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated with Heat Shrink
Color Yellow
Contact Material Copper Alloy
Contact Finish Tin
Material - Insulation Polyamide (PA), Nylon
Base Product Number 201451-000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names B-106-1993,B-106-1993-ND,201451000
Standard Package 500
Win Source Part Number 1035596-201451-000
Ultra Librarian 3D Model Ultra Librarian 201451-000 CAD Model

Description

The Dura-Seal series yellow ring connector is a high-quality connector that is designed for use in various applications.

  • Series: Dura-Seal
  • Terminal Type: Circular
  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide and Nylon
  • Thickness: -
  • Width: 0.710 inches (18.03mm)
  • Overall Length: 1.850 inches (46.99mm)
  • Insulation: Heat Shrink
  • Wire Gauge: 10-12 AWG
  • Package: Bulk
  • Standard Package: 500
