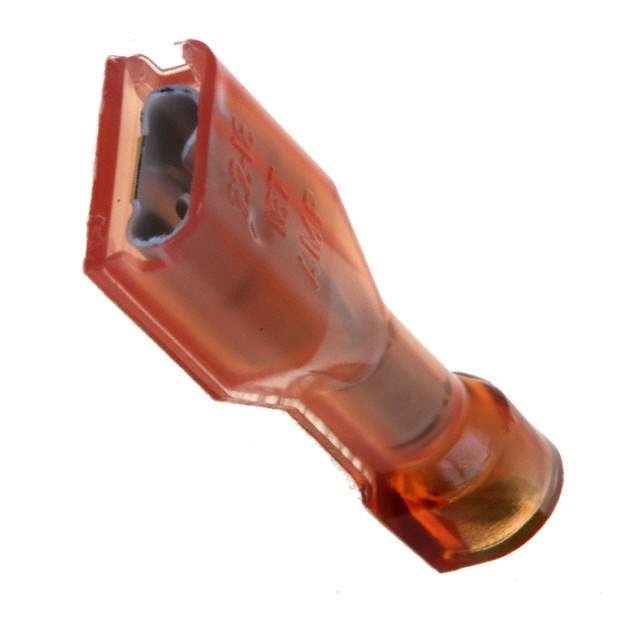

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Ultra-Fast Plus
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Win Source Part Number 761962-2-520409-2
Popularity Medium
Supply and Demand Status Limited
Family Name 520409
Introduction Date September 21, 2005
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2-520409-2 CAD Model

Description

The 761962-2-520409-2 is a fully insulated female ultra-fast plus crimp connector from TE Connectivity AMP Connectors.

  • Wire Gauge: 18-22 AWG
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Insulation Diameter: 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
  • Overall Length: 0.855" (21.72mm)
  • Mounting: Free Hanging (In-Line)
  • Packaging: Bulk
  • Contact Material: Brass
  • Contact Finish: Tin
  • Color: Red
  • Family: 520409
  • Introduction Date: September 21, 2005
