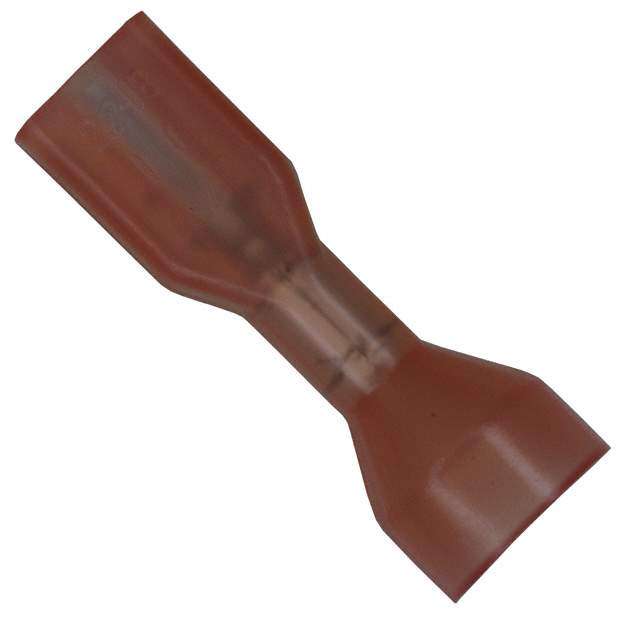

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.865" (21.97mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.230" (5.84mm)
Base Product Number 520306
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-520306-2-SI,A27800,2-520306-2-ND,2266-2-520306-2TR,25203062,A27800CT,A27800-ND,A27800TR
Standard Package 2,000
Win Source Part Number 1333588-2-520306-2
Ultra Librarian 3D Model Ultra Librarian 2-520306-2 CAD Model

Description

This quick connect terminal from TE Connectivity AMP Connectors is a high-quality electronic component suitable for a wide range of applications.

  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Termination: Crimp
  • Insulation Type: Fully Insulated
  • Terminal Type: Female
  • Terminal Shape: Standard
  • Package: Reel - TR package
  • Standard Package: 2,000
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.90.4000
