M7566-05 Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

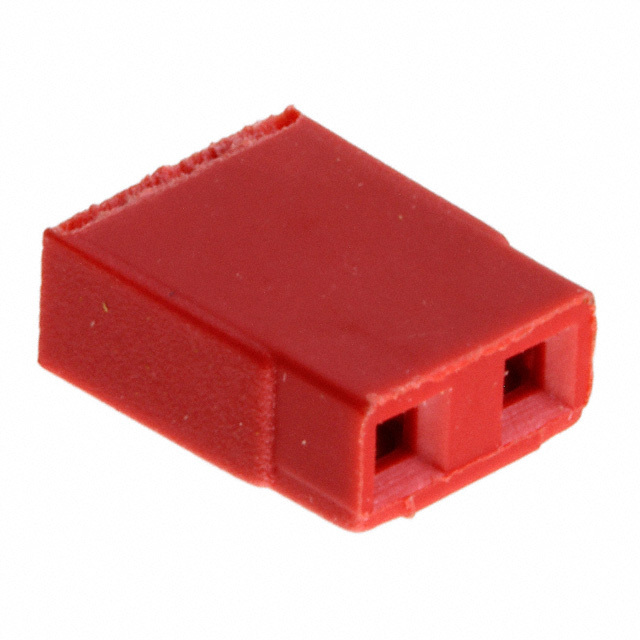

M7566-05

Part No M7566-05
Manufacturer Harwin Inc.
Catalog Shunts, Jumpers
Description OPEN TOP JUMPER SOCKET MULTI-00E
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsShunts, Jumpers
Manufacturer Harwin Inc.
Series M75
Packaging Bulk
Part Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.248" (6.30mm)
Contact Finish Gold
Contact Finish Thickness 5.11μin (0.130μm)
Color Red
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Voltage Rating 250V
Current Rating (Amps) 3A
Base Product Number M7566
Ultra Librarian 3D Model Ultra Librarian M7566-05 CAD Model
