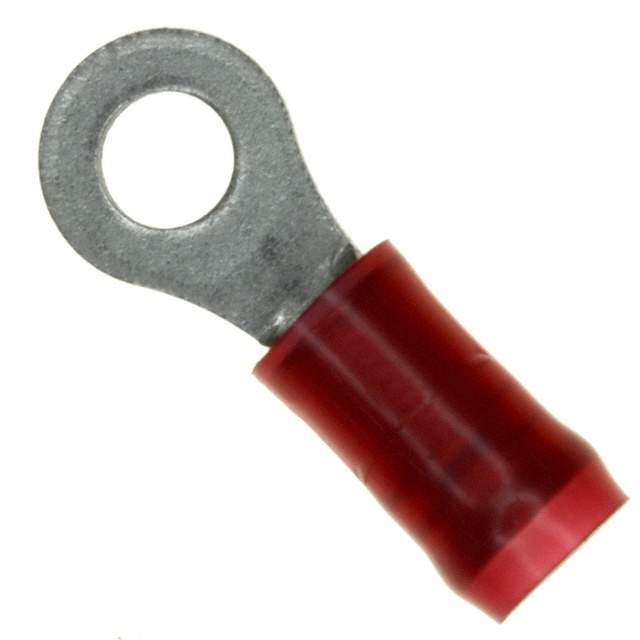

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.281" (7.14mm)
Length - Overall 0.797" (20.24mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 36152
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2-36152-1-ND,2361521,-405813072-SI-ND,A1060TR,A28089-ND,-2-36152-1-SI,A1060CT,-405813072-SI,A28089
Standard Package 5,000
Win Source Part Number 1035905-2-36152-1
Ultra Librarian 3D Model Ultra Librarian 2-36152-1 CAD Model

Description

The TE Connectivity AMP Connectors 2-36152-1 is a connector with a circular terminal type.

  • Termination Feature: Serrated
  • Termination: Crimp
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA) and nylon
  • Thickness: 0.031" (0.79mm)
  • Width: 0.281" (7.14mm)
  • Length: 0.797" (20.24mm)
  • Insulation Diameter: 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
  • Stud/Tab Size: 6 Stud
