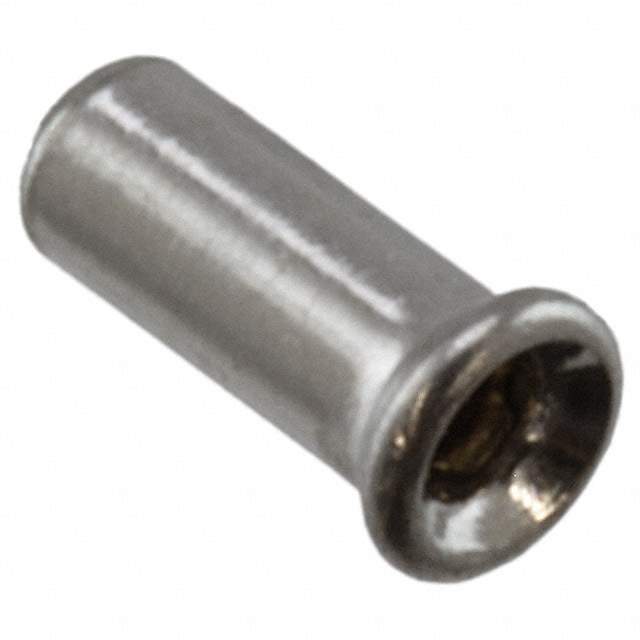

2-331272-7 Real Image1 2-331272-7 Real Image2
Same model may have multiple batches, images only for reference.
2-331272-7 Real Image1 2-331272-7 Real Image2
2-331272-7 Real Image1 2-331272-7 Real Image2
Same model may have multiple batches, images only for reference.

2-331272-7

Part No 2-331272-7
Manufacturer TE Connectivity
Catalog Terminals
Description CONN PIN RCPT .022-.025 SOLDER / Pin Receptacle Connector 0.022" ~ 0.025" (0.56mm ~ 0.64mm) No Tail Solder
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors
Mfr TE Connectivity
Series 2
Package Bulk
Product Status Obsolete
Tail Type No Tail
Termination Solder
Length - Overall 0.138" (3.51mm)
Accepts Pin Diameter 0.022" ~ 0.025" (0.56mm ~ 0.64mm)
Accepts Square Pin Size -
Pin Hole Diameter -
Mounting Hole Diameter 0.052" (1.32mm)
Flange Diameter 0.070" (1.77mm)
Tail Diameter -
Socket Depth 0.125" (3.18mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Features Closed Bottom
Temperature Range - Operating -65°C ~ 126°C
Board Thickness -
Insertion Force -
Base Product Number 331272
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 20,000 pcs
Win Source Part Number 1380683-2-331272-7
Ultra Librarian 3D Model Ultra Librarian 2-331272-7 CAD Model

Description

The TE Connectivity 1380683-2-331272-7 is a PC pin receptacle socket connector from the 2 series. It features a closed bottom design and a solder termination.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Beryllium Copper
  • Standard Package: 20,000 Pieces
  • Overall Length: 0.138" (3.51mm)
  • Mounting Hole Diameter: 0.052" (1.32mm)
