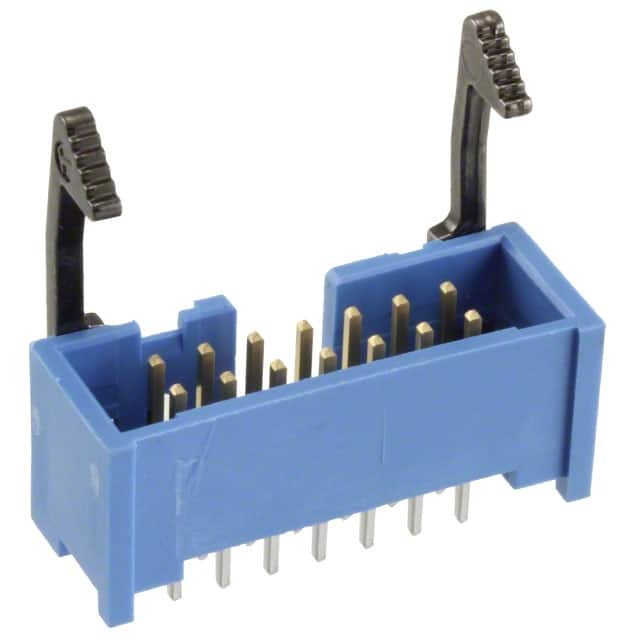

Same model may have multiple batches, images only for reference.

2-1761606-5

Name: 2-1761606-5
Brand: TE Connectivity
SKU: 847919
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-1761606-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMP-Latch
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.237" (6.02mm)
Contact Length - Post	0.102" (2.60mm)
Insulation Height	0.404" (10.26mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Current Rating (Amps)	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	1761606
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	847919-2-1761606-5
Ultra Librarian 3D Model	Ultra Librarian 2-1761606-5 CAD Model

Alternative Products

Description

The AMP-Latch series is a versatile header connector designed for reliable and secure connections from TE Connectivity.

Positions: 14.
Pitch: 0.100" (2.54mm).
Contact Gender: Male pins.
Termination: Solder.
Fastening Type: Latch lock/eject hooks.
Voltage Rating: 250VAC.
Current Rating: 1A per contact.
Package: Tube.
Standard Package: 20 pcs.
