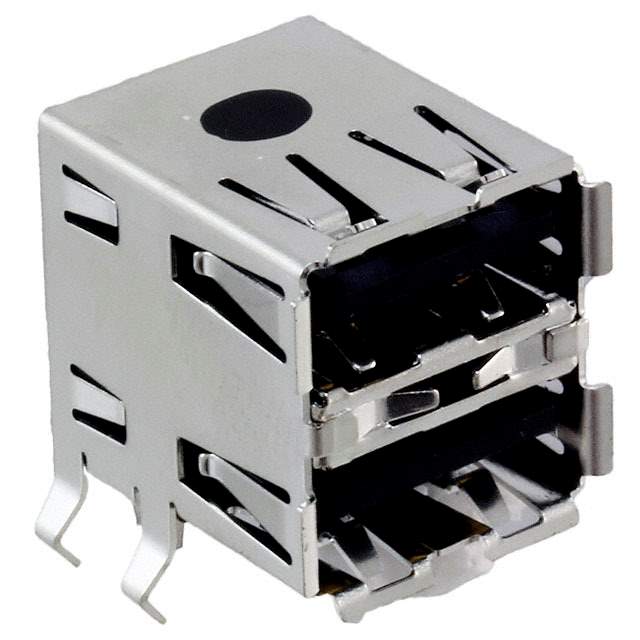

1903815-1 Real Image
Same model may have multiple batches, images only for reference.

1903815-1

Part No 1903815-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA STACK R/A / USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type USB-A (USB TYPE-A), Stacked
Number of Contacts 8
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Ingress Protection IP20
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 1903815
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1903815-1-LSI,A107353,-1903815-1-SI,-1903815-1-CSI,19038151
Standard Package 70
Win Source Part Number 1011502-1903815-1
Ultra Librarian 3D Model Ultra Librarian 1903815-1 CAD Model

Description

The 1011502-1903815-1 from TE Connectivity AMP Connectors is a USB-A (USB TYPE-A), stacked, shielded, and board lock connector.

  • Connector Type: USB-A (USB TYPE-A)
  • Features: Stacked, Shielded, Board Lock
  • Package: Tray
  • Contacts: 8
  • Type: Receptacle
  • Specification: USB 2.0
  • Voltage Rating: 30VAC
  • Mounting: Through-Hole, Right-Angle
  • Operating Temperature: -55°C ~ 85°C
  • Flammability Rating: UL94 V-0
  • Ingress Protection: IP20
  • Mating Cycle: 1500
  • Current Rating: 1A
