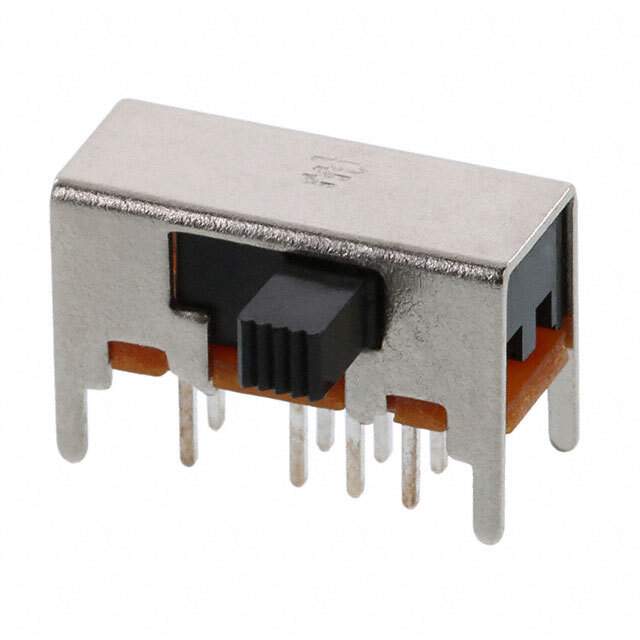

1825290-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MHS
Package Bulk
Circuit DP3T
Contact Timing Shorting (MBB)
Switch Function On-On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 125 V
Actuator Type Standard
Actuator Length 4.50mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825290
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9050
Other Names MHS233RA04-ND,MHS233RA04,2266-1825290-3
Standard Package 450
Win Source Part Number 1024257-1825290-3
Ultra Librarian 3D Model Ultra Librarian 1825290-3 CAD Model

Description

The MHS series slide switch from TE Connectivity ALCOSWITCH Switches is an ideal switch for applications requiring a DP3T circuit with an on-on-on switch function.

  • Voltage Rating: AC 125V
  • Current Rating: 300mA (AC)
  • Contact Timing: Shorting (MBB)
  • Mounting Type: Through-hole, right-angle
  • Actuator Type: Standard
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 2.00mm
  • Operating Force: 600gf
  • Electrical Life: 15,000 cycles
  • Mechanical Life: 15,000 cycles
  • Temperature Range: -20°C to 85°C
  • Terminals: Epoxy-sealed
  • Packaging: Bulk
  • Standard Package: 450
