Same model may have multiple batches, images only for reference.

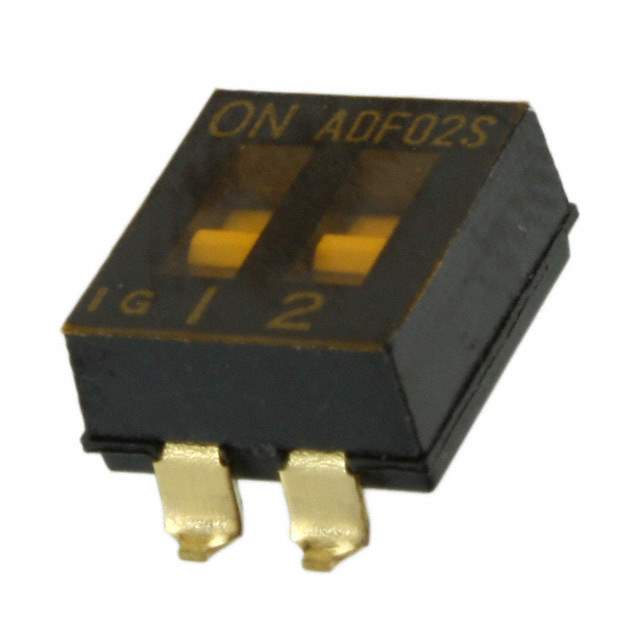

1825059-5 Real Image
Same model may have multiple batches, images only for reference.

1825059-5

Part No 1825059-5
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 24V
Datasheet
1825059-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.177" (4.50mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Temperature Range - Operating -30°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 1014179-1825059-5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1825059-5 CAD Model

Description

This TE Connectivity ALCOSWITCH Switch is a SPST circuit with a slide (standard) actuator type.

  • Voltage Rating: 24VDC
  • Current Rating: 100mA
  • Height Above Board: 0.177" (4.50mm)
  • Length: 0.278" (7.06mm)
  • Washable: Yes
  • Termination Style: Gull wing
  • Suitable For: Switches
  • Operating Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Balance
