Same model may have multiple batches, images only for reference.

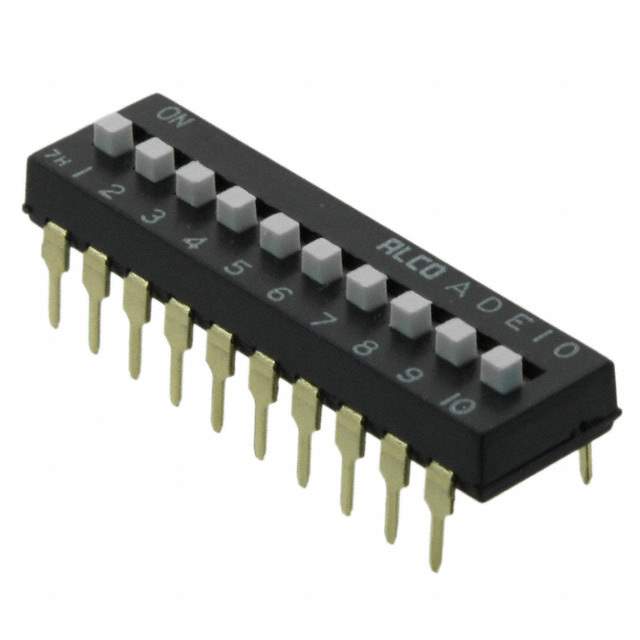

1825057-9 Real Image
Same model may have multiple batches, images only for reference.

1825057-9

Part No 1825057-9
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 24V  /  Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ADE
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.078" (27.38mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825057
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names ADE1004
Standard Package 15
Win Source Part Number 1035085-1825057-9
Ultra Librarian 3D Model Ultra Librarian 1825057-9 CAD Model

Description

This electronic component is a DIP switch with a Win Source Part Number of 1035085-1825057-9. It belongs to the ADE series and falls under the category of Switches>DIP Switches. This DIP switch has 10 positions with a pitch of 0.100" (2.54mm), full termination style of PC Pin, and gold contact finish. It has a voltage rating of 24VDC and a height above board of 0.228" (5.80mm). This DIP switch is designed to be durable and reliable, ensuring that your electronic device operates smoothly. It is easy to install and operate, making it a convenient choice for both professionals and enthusiasts alike.
