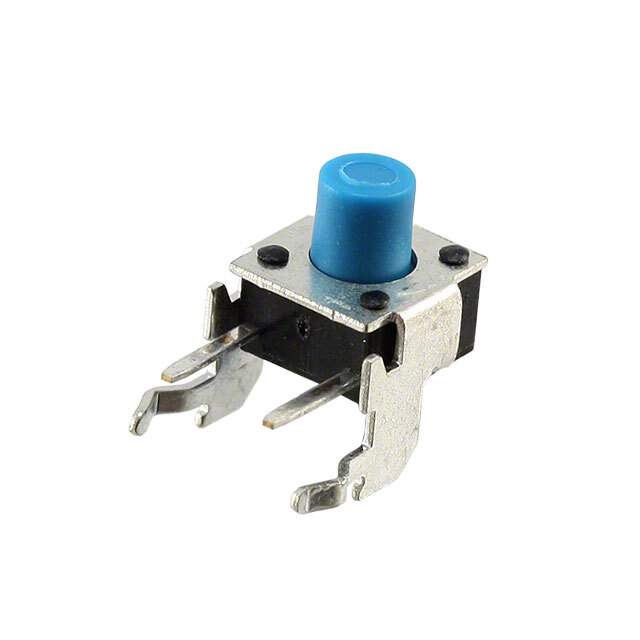

1825027-8 Real Image
Same model may have multiple batches, images only for reference.

1825027-8

Part No 1825027-8
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / MICRO MINIATURE PUSHBUTTON SWITCH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 24VDC
Actuator Type Standard
Mounting Style Through Hole, Right Angle
Actuator Length, Right Angle 5.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.11mm x 6.60mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802849-1825027-8
Ultra Librarian 3D Model Ultra Librarian 1825027-8 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1825027-8 is a SPST-NO circuit switch with an off-mom switch function.

  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
  • Package: Through-hole, right angle
  • Termination: PC pin
  • Outline: 7.11mm x 6.60mm
  • Actuator Material: Polyamide (PA), nylon
  • Actuator Type: Side actuated
  • Travel: 0.25mm
  • Actuator Length (Right Angle): 5.85mm
  • Supply and Demand Status: Balanced
