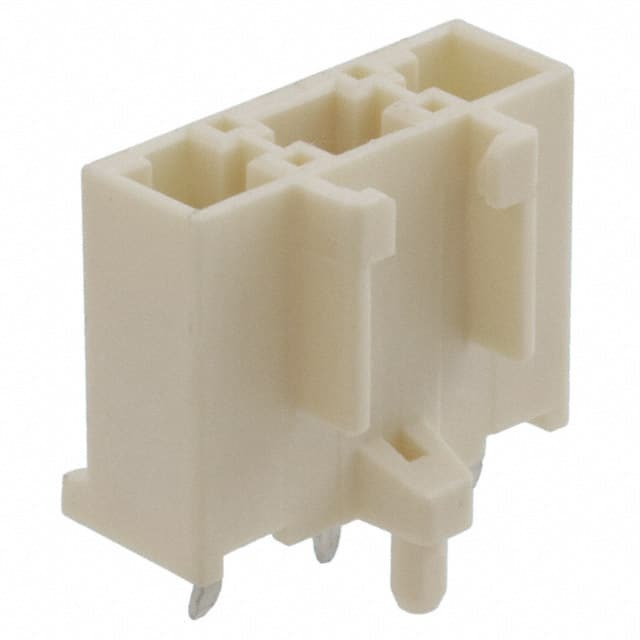

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Power Double Lock
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.256" (6.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.575" (14.60mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Applications General Purpose
Base Product Number 179846
Standard Package 240 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850078-179846-1
Ultra Librarian 3D Model Ultra Librarian 179846-1 CAD Model

Description

The Power Double Lock Header is a reliable connector designed for use in various electronic applications. Bold: Power Double Lock Header.

  • Positions: 3
  • Contact Type: Tab
  • Feature: Board Guide
  • Termination: Kinked Pin and Solder
  • Current Rating: Varies by wire gauge
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through-Hole
  • Design: Shrouded 4-Wall
  • Operating Temperature Range: -30°C to 105°C
  • Product Status: Active
  • Standard Package: 240 pieces
