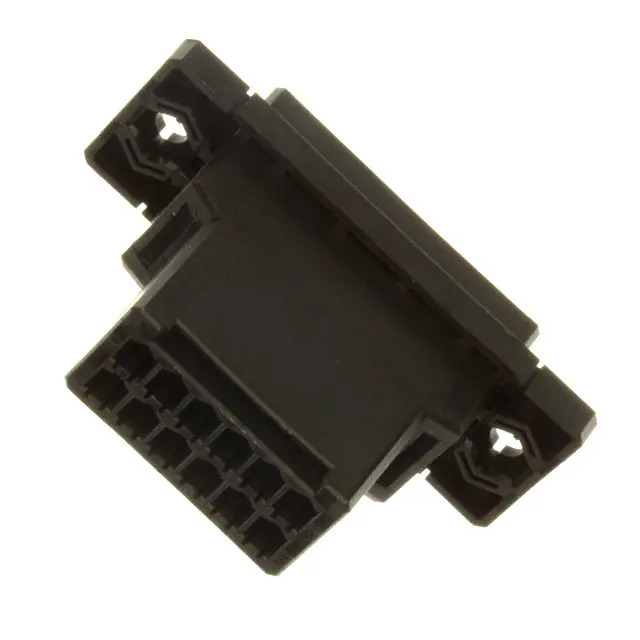

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 12
Pitch 0.150" (3.81mm)
Number of Rows 2
Row Spacing 0.200" (5.08mm)
Mounting Type Panel Mount
Contact Termination Crimp
Fastening Type Push-Pull
Color Black
Features Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 178803
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365414-178803-6
Ultra Librarian 3D Model Ultra Librarian 178803-6 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3100 series offers a reliable solution for rectangular connector housings.

  • Mounting Feature: Mounting Flange
  • Pitch: 0.150" (3.81mm)
  • Row Spacing: 0.200" (5.08mm)
  • Mounting Type: Panel Mount
  • Fastening Type: Push-Pull
  • Number of Positions: 12
  • Number of Rows: 2
  • Contact Termination: Crimp
  • Connector Type: Plug
  • Contact Type: Tab
  • Color: Black
  • Temperature Range: -55°C ~ 105°C
  • Contact Type: Contacts Not Included
  • Status: Active
