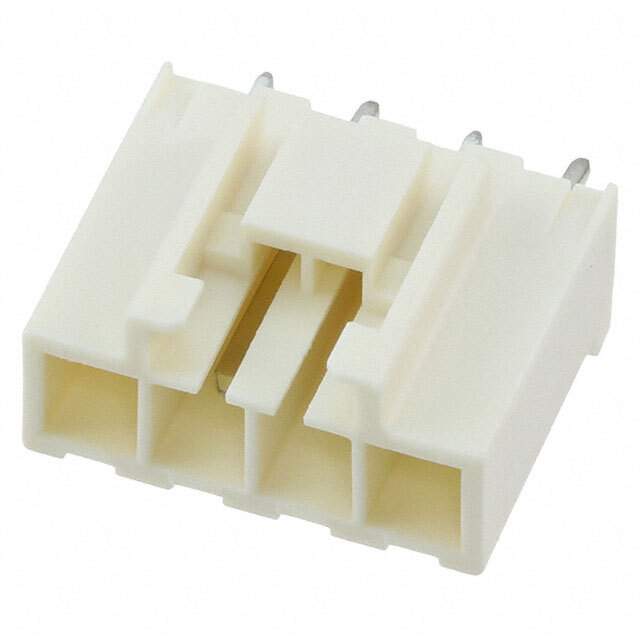

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal Power
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.551" (14.00mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Applications General Purpose
Base Product Number 178487
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-178487-1,-178487-1-SI,178487-1-ND,A122368
Standard Package 250
Win Source Part Number 1112919-178487-1
Ultra Librarian 3D Model Ultra Librarian 178487-1 CAD Model

Description

The 1011041 is a universal power header connector from TE Connectivity AMP Connectors.

  • Number of Positions: 4
  • Contact Shape: Rectangular
  • Connector Type: Header
  • Contact Type: Tab
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Pitch-Mating: 0.156 inches (3.96 mm)
  • Contact Finish-Mating: Tin
  • Contact Length-Post: 0.150 inches (3.81 mm)
  • Insulation Height: 0.551 inches (14.00 mm)
  • Mounting Type: Through-Hole
  • Shrouded: 4 Walls
  • Operating Temperature Range: -30°C to 105°C
  • Application: General Purpose
  • Package: 250 Connectors
  • Material Flammability Rating: UL94 V-0
