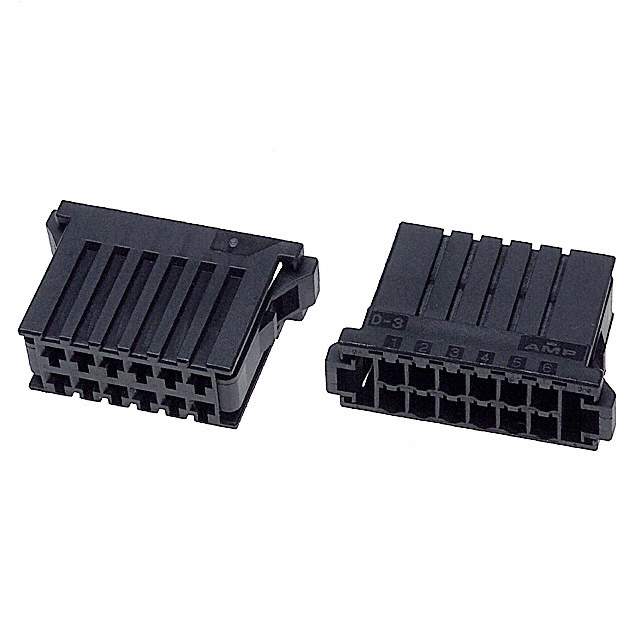

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 12
Pitch 0.150" (3.81mm)
Number of Rows 2
Row Spacing 0.200" (5.08mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Win Source Part Number 1001741-178289-6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 178289-6 CAD Model

Description

The TE Connectivity AMP Connectors 1001741-178289-6 is a bulk packaging receptacle connector with 12 positions and a pitch of 0.150 inches (3.81mm).

  • Packaging: Bulk
  • Positions: 12
  • Pitch: 0.150 inches (3.81mm)
  • Contact Type: Female Socket
  • Rows: 2
  • Row Spacing: 0.200 inches (5.08mm)
  • Termination: Crimp
  • Mounting: Free Hanging (In-Line)
  • Applications: Power supplies, industrial machinery, automotive systems
  • Color: Black
  • Category: Connectors and Interconnects
  • Market Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
