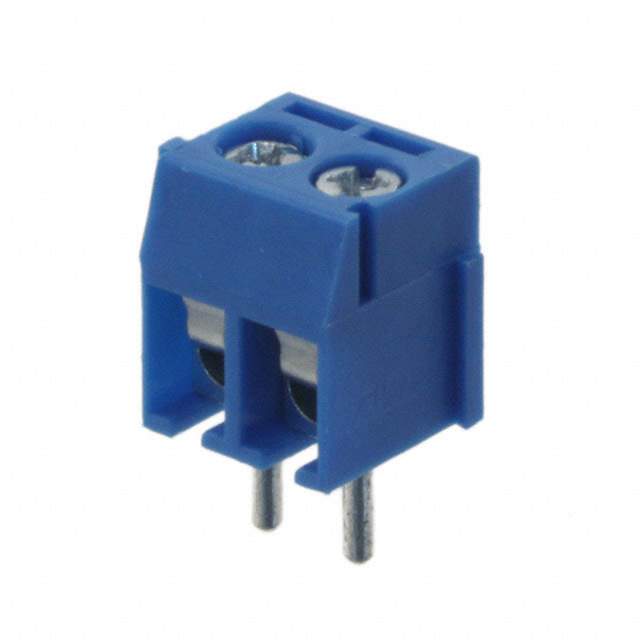

1776275-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.138" (3.50mm)
Mating Orientation Horizontal with Board
Current 7A
Voltage 250V
Wire Gauge 18-26 AWG
Mounting Style Through Hole
Wire Termination Screw - Leaf Spring, Wire Guard
Features Interlocking (Side)
Color Blue
Temperature Range - Operating -55°C ~ 105°C
Dielectric Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Copper Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel, Galvanized - Chromate Plated
Torque - Screw 0.28 Nm (2.5 Lb-In)
Screw Thread M2.6
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121487-1776275-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 1776275-2 CAD Model

Description

The 1776275-2 is a 2-position per level interlocking connector from TE Connectivity AMP Connectors.

  • Pitch: 0.138" (3.50mm)
  • Mounting: Through Hole
  • Current Rating: 7A
  • Voltage Rating: 250V
  • Wire Gauge: 18-26 AWG
  • Screw Thread: M2.6
  • Dielectric Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Brass with copper tin plating
  • Clamp Material: Steel and stainless steel, plated with galvanized-chromate
  • Screw Material: Steel, plated with galvanized-chromate
  • Torque: 0.28 Nm (2.5 Lb-In)
  • Operating Temperature Range: -55°C to 105°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
