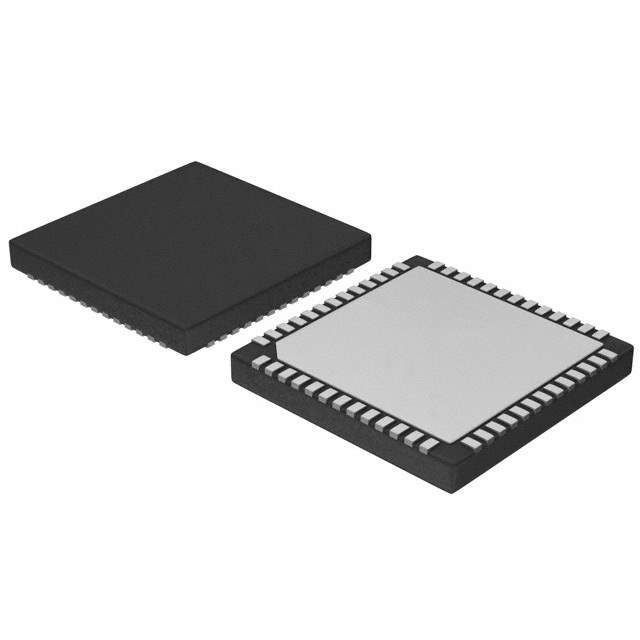

The NB7L111MMN from ON Semiconductor is a sophisticated clock divider and fanout buffer designed to meet the stringent requirements of high-speed data communication systems. This integrated circuit is part of ON Semiconductor's high-performance clock management portfolio, providing a reliable and efficient solution for system clock distribution and timing adjustment.

Key Features

• High-Speed Operation: The NB7L111MMN supports very high-frequency operation, with the capability to handle clock signals up to 7GHz or data rates up to 10Gbps, making it suitable for high-speed applications such as data centers, networking, and telecommunications equipment.
• Flexible Clock Division: It offers configurable division ratios, allowing users to divide the input clock by 1, 2, 4, or 8, providing versatility in generating various clock frequencies required by different system components.
• Low Additive Phase Jitter: The device is engineered to ensure minimal additive phase jitter, which is critical for maintaining signal integrity in high-speed data transmission.
• Differential Inputs and Outputs: The NB7L111MMN features differential LVPECL inputs and outputs, which are essential for reducing noise and improving signal quality in environments with high electromagnetic interference (EMI).
• Power Supply Flexibility: It operates over a wide range of power supply voltages from 2.375V to 3.465V, enabling compatibility with various system power schemes.
• Temperature Range: The device is operational over an extended industrial temperature range of -40°C to +85°C, ensuring reliability in diverse operating conditions.

Applications

The NB7L111MMN is ideal for use in a variety of applications that require precise clock management, including but not limited to:

• High-speed data communication
• Networking and telecommunications
• Server and storage systems
• Test and measurement equipment
• High-performance computing

ON Semiconductor's NB7L111MMN is a testament to the company's commitment to providing advanced solutions that enhance the performance and reliability of electronic systems. With its high-speed capabilities and precise clock management features, the NB7L111MMN is an indispensable component for modern digital infrastructure.
