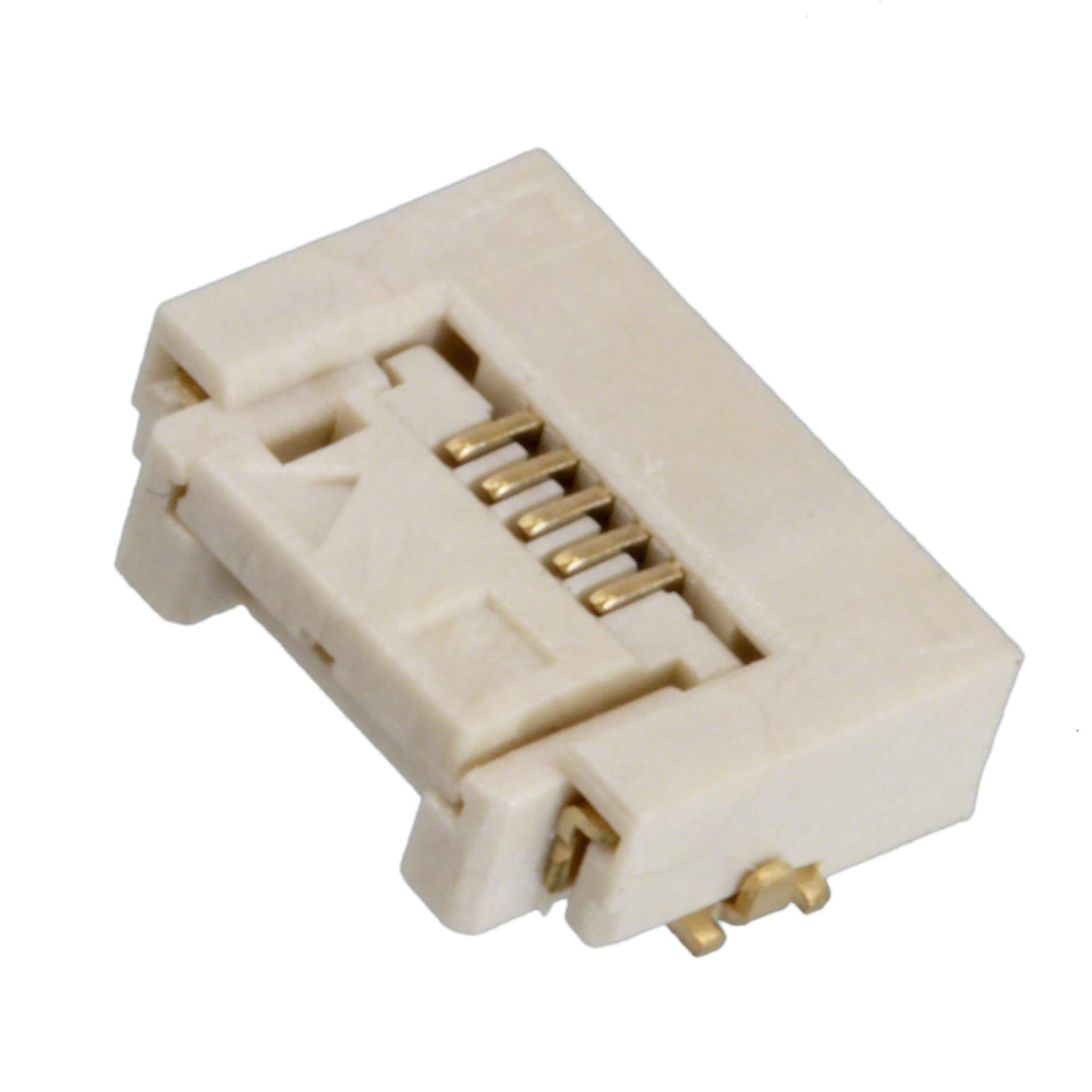

1775333-5 Real Image
Same model may have multiple batches, images only for reference.

1775333-5

Part No 1775333-5
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 5POS 0.50MM R/A / 5 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Product Status Obsolete
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 5
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.081" (2.05mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 250V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 50.0µin (1.27µm)
Housing Color Natural
Actuator Color Natural
Base Product Number 1775333
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number A120415,-1775333-5-SI,2266-1775333-5
Standard Package 2,000
Win Source Part Number 1333315-1775333-5
Ultra Librarian 3D Model Ultra Librarian 1775333-5 CAD Model

Description

The 1333315-1775333-5 from TE Connectivity AMP Connectors is a FFC/FPC Connector Assembly with 5 positions and a pitch of 0.020" (0.50mm).

  • Solder Retention: yes
  • Insertion Force: zero insertion force (ZIF)
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Voltage Rating: 250V
  • Current Rating: 0.5A
  • Housing Material: liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Locking Feature: flip lock
  • Cable End Type: straight
  • Temperature Range: -20°C ~ 85°C
  • Mounting Type: surface mounted or right angled mounted
  • Product Status: obsolete
  • Standard Package: 2,000
