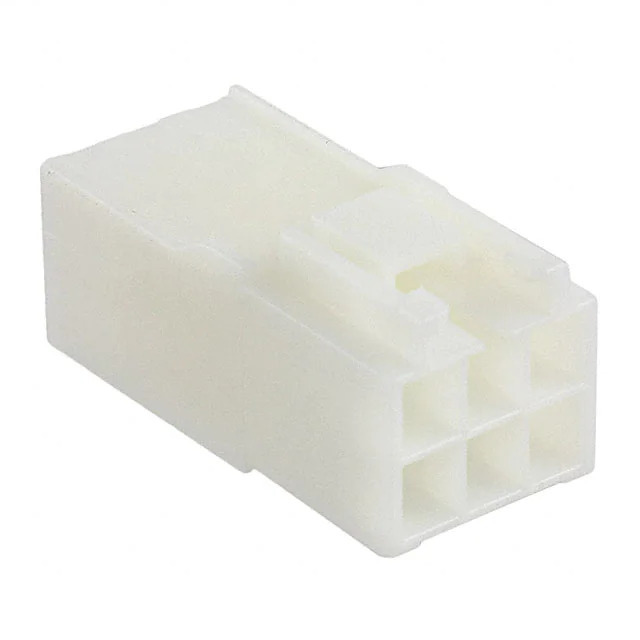

176285-1 TE Connectivity
Same model may have multiple batches, images only for reference.

176285-1

Part No 176285-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 6POS 3.96MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Universal Power
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Number of Positions 6
Pitch 0.156" (3.96mm)
Number of Rows 2
Row Spacing 0.181" (4.60mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -30°C ~ 105°C
Note Contacts Not Included
Base Product Number 176285
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365763-176285-1
Ultra Librarian 3D Model Ultra Librarian 176285-1 CAD Model

Description

The TE Connectivity AMP Connectors Universal Power series is a versatile solution for rectangular connector applications.

  • Description: Receptacle Connector Housing
  • Contact Gender: Accommodates 6 Male Pin Contacts
  • Pitch: 0.156" (3.96mm)
  • Row Spacing: 0.181" (4.60mm)
  • Operating Temperature: -30°C to 105°C
  • Fastening Type: Latch Lock
  • Applications: Industrial, automotive, and consumer electronics
  • Series: Universal Power
  • Manufacturer: TE Connectivity AMP Connectors
