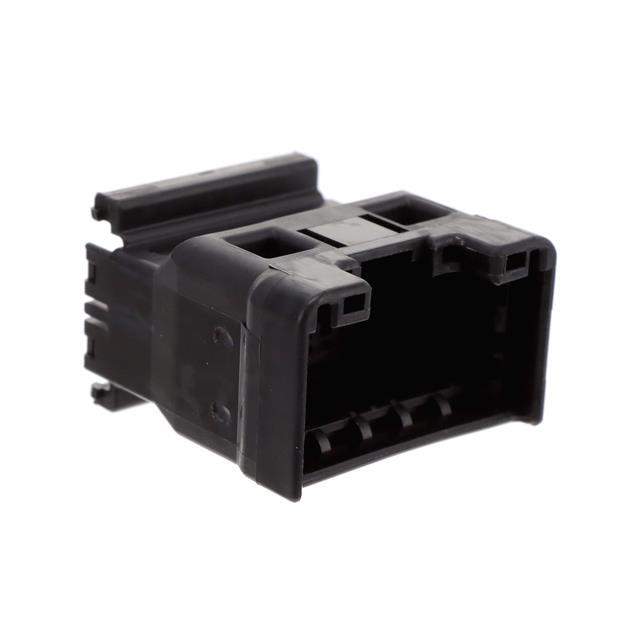

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Multi-Lock
Package Bulk
Connector Type Receptacle
Contact Type Tab
Number of Positions 20
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.205" (5.20mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Note Contacts Not Included
Base Product Number 175652
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names -175652-2-CSI,-175652-2-SI,-175652-2-LSI
Standard Package 600
Win Source Part Number 1157392-175652-2
Ultra Librarian 3D Model Ultra Librarian 175652-2 CAD Model

Description

The TE Connectivity AMP Connectors Multi-Lock series connector is a rectangular housing connector with 20 positions and a pitch of 0.098 inches (2.50mm).

  • Color: Black
  • Type: Receptacle with tab contact
  • Rows: Two
  • Row Spacing: 0.205 inches (5.20mm)
  • Mounting: Free hanging (in-line)
  • Termination: Crimp
  • Package: Bulk
  • Contacts: Not included
  • Application: Ideal for use in electronic devices that require high-performance connectivity.
