Same model may have multiple batches, images only for reference.

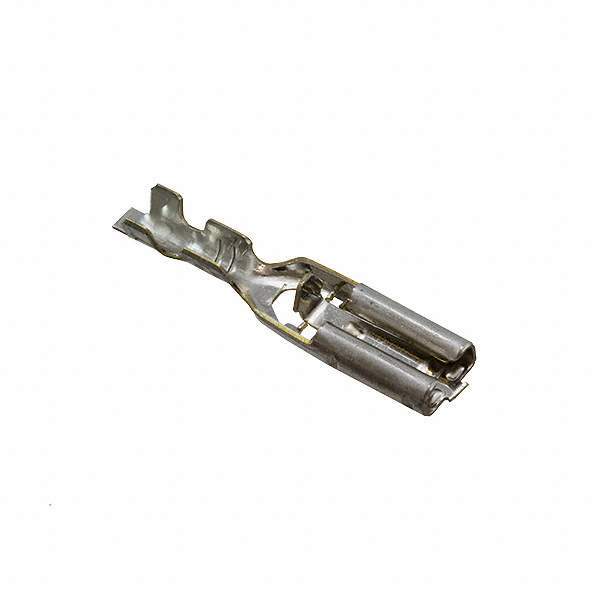

175411-1

Name: 175411-1
Brand: TE Connectivity
SKU: 1285193
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	175411-1
Manufacturer	TE Connectivity
Catalog	Terminals
Datasheet	175411-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Mark II
Package	Tape & Reel (TR),Cut Tape (CT)
Terminal Type	Standard
Gender	Female
Tab Width	0.110" (2.79mm)
Tab Thickness	0.020" (0.51mm)
Tab Length	0.236" (6.00mm)
Length - Overall	0.677" (17.20mm)
Termination	Crimp
Wire Gauge	20-24 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.040" ~ 0.070" (1.02mm ~ 1.78mm)
Base Product Number	175411
Other Names	2266-175411-1TR,-175411-1-CSI,-175411-1-SI,1754111,A104082CT,A104082TR,175411-1
Standard Package	8,000
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1285193-175411-1
Ultra Librarian 3D Model	Ultra Librarian 175411-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 175411 Mark II female quick disconnect terminal is a crimp type connector with a tab width of 0.110" (2.79mm) and a tab thickness of 0.020" (0.51mm).

Overall Length: 0.677" (17.20mm)
Tab Length: 0.236" (6.00mm)
Insulation Diameter: 0.040" ~ 0.070" (1.02mm ~ 1.78mm)
Wire Gauge: 20-24 AWG
Insulation: non-insulated
Packaging: tape and reel or cut tape
Standard Package: 8,000
Mounting: free hanging (in-line)
Contact Material: brass
Contact Finish: tin
