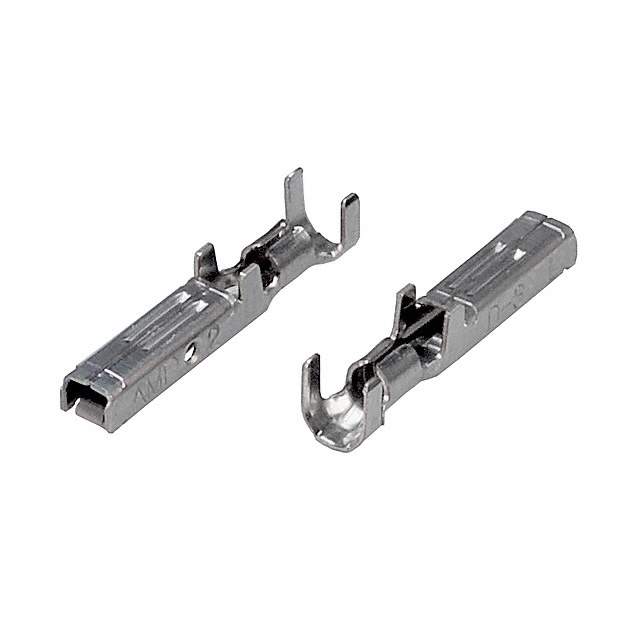

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3
Package Bulk
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 16-20 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 175218
Other Names A29240,-175218-2-LSI,1752182,-175218-2-SI,A29225,-175218-2-CSI,A29240
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1293409-175218-2
Ultra Librarian 3D Model Ultra Librarian 175218-2 CAD Model

Description

The TE Connectivity AMP Connectors 1293409-175218-2 is a socket contact for rectangular connectors used in various applications.

  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Wire Gauge: 16-20 AWG
  • Contact Termination: Crimp
  • Package: Bulk
  • Standard Package: 1,000
  • Category: Connectors, Interconnects>Rectangular Connectors - Contacts
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
