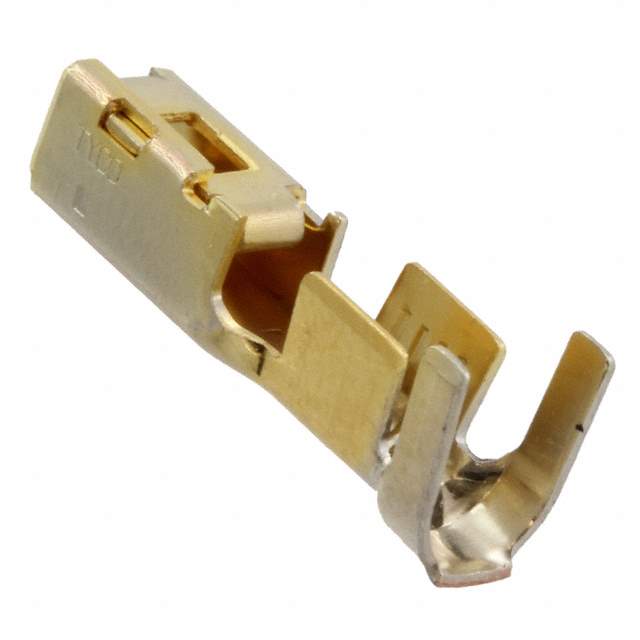

1747498-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-4200
Package Bulk
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 12-14 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 1747498
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names -1747498-2-CSI,A116539,-1747498-2-SI
Standard Package 500
Win Source Part Number 1004237-1747498-2
Ultra Librarian 3D Model Ultra Librarian 1747498-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-4200 series socket contact is a rectangular connector that has gold contact finish with thickness of 15.0µin (0.38µm).

  • Series: Dynamic D-4200
  • Contact Gender: Socket
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Wire Gauge: 12-14 AWG
  • Contact Termination: Crimp
  • Package: Bulk
  • Standard Package: 500
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.90.4000
