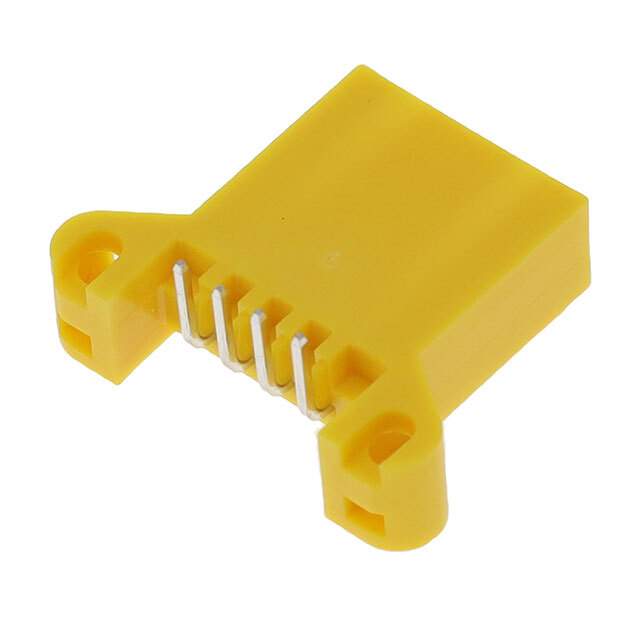

1743218-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Micro Quadlok
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.111" (2.82mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Insulation Color Yellow
Base Product Number 1743218
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1743218-5-SI,-1743218-5-CSI,-1743218-5-LSI,A142523
Standard Package 19
Win Source Part Number 1219467-1743218-5
Ultra Librarian 3D Model Ultra Librarian 1743218-5 CAD Model

Description

The Micro Quadlok series header connector is a 4-position male pin rectangular connector designed for board-to-cable/wire applications.

  • Mounting Feature: Mounting Flange
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Contact Finish (Mating & Post): Tin
  • Design: Shrouded 4-Wall
  • Contact Shape: Square
  • Pitch (Mating): 0.100" (2.54mm)
  • Contact Length (Mating): 0.264" (6.70mm)
  • Voltage Rating: No Voltage Rating
  • Temperature Range (Operating): Not Specified
  • Packaging: Tube
  • Pieces Per Package: 19
