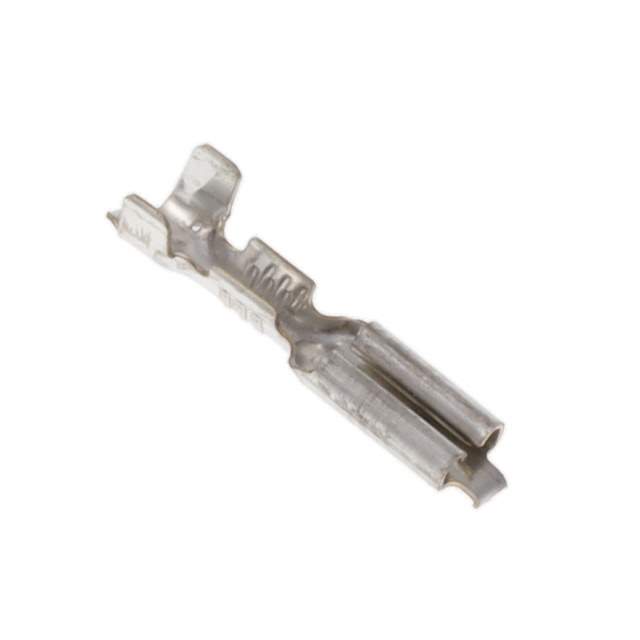

1742785-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.635" (16.13mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 1742785
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A135223DKRINACTIVE,A135223CT,1742785-1-ND,A135223DKR-ND,A135223DKR,A135223TR
Standard Package 15,000
Win Source Part Number 1027411-1742785-1
Ultra Librarian 3D Model Ultra Librarian 1742785-1 CAD Model

Description

This Faston connector is a female terminal type with a standard terminal, and it is non-insulated.

  • Terminal Type: Female
  • Terminal Style: Standard
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Contact Material: Brass
  • Overall Length: 0.635 inches
  • Tab Width: 0.110 inches
  • Thickness: 0.020 inches
  • Tab Length: 0.250 inches
  • Insulation Diameter: 0.090 to 0.130 inches
  • Mounting: Free-Hanging (In-Line)
  • Package: 15,000
  • Packaging: Tape and Reel (TR) or Cut Tape (CT)
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
