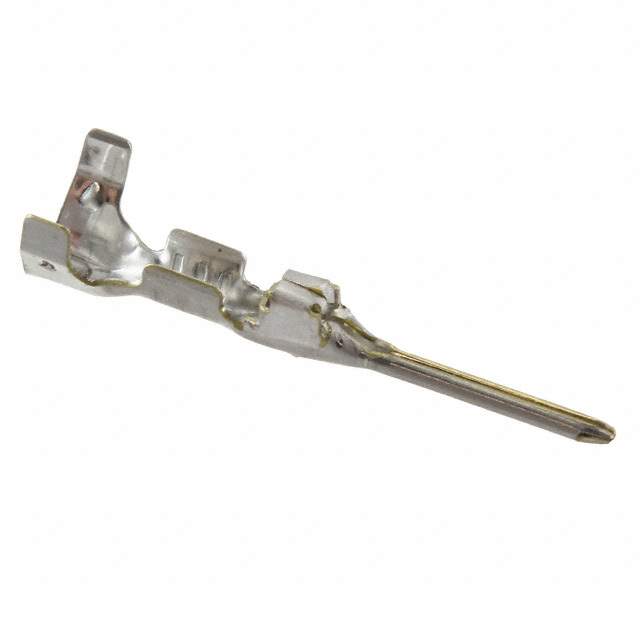

173682-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Tab
Contact Termination Crimp
Wire Gauge 20-22 AWG
Contact Finish Tin
Base Product Number 173682
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 173682-1-ND,-173682-1-SI,-173682-1-CSI,A126054CT,A126054TR,2266-173682-1TR,-173682-1-LSI
Standard Package 5,000
Win Source Part Number 1333628-173682-1
Ultra Librarian 3D Model Ultra Librarian 173682-1 CAD Model

Description

The TE Connectivity 173682-1 is a rectangular connector contact with a 20-22 AWG wire gauge size.

  • Wire Gauge: 20-22 AWG
  • Package: Reel - TR
  • Contact Finish: Tin
  • Supply and Demand Status: Balanced
  • RoHS: Compliant
  • Standard Package: 5,000 pieces
  • REACH: Not affected
  • ECCN: EAR99
  • Category: Rectangular Connector Contacts
