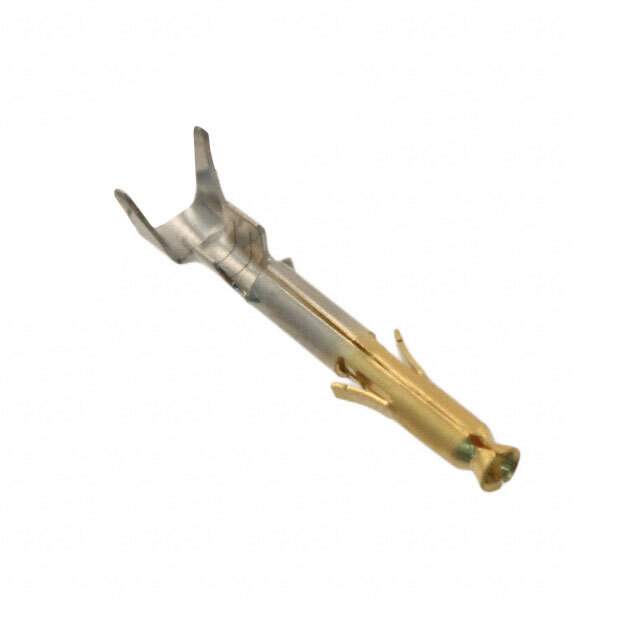

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts>Multi Purpose
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 170366
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170366-3-ND,1703663,A97690
Standard Package 300
Win Source Part Number 1334293-170366-3
Ultra Librarian 3D Model Ultra Librarian 170366-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334293-170366-3 is a multi-purpose contact that comes in a stamped package. It has a wire gauge of 18-22 AWG and is made of brass contact material with a gold finish.

  • Part Number: 1334293-170366-3
  • Packaging: Stamped
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Termination: Crimp
  • Standard Package: 300
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Application: Reliable Electrical Connections
