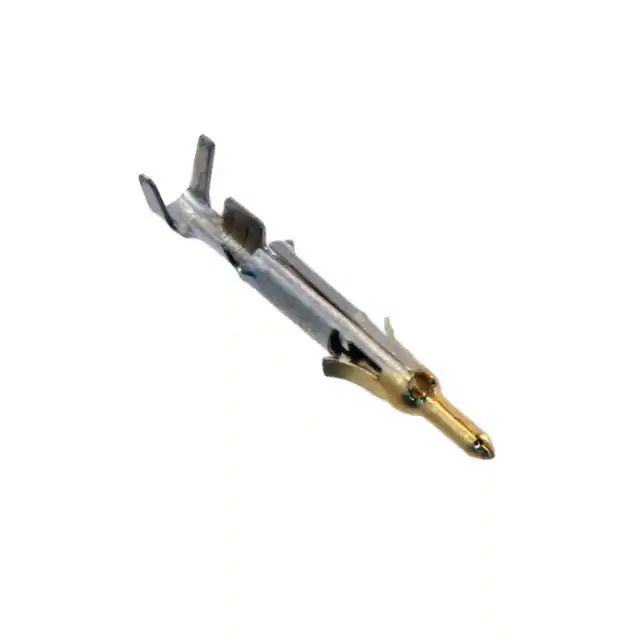

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 170359
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363381-170359-3
Ultra Librarian 3D Model Ultra Librarian 170359-3 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK Pin is a versatile contact suitable for a wide range of applications.

  • Contact Type: Stamped
  • Contact Termination: Crimp
  • Wire Gauge: 22-26 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Series: Mini-Universal MATE-N-LOK
  • Product Status: Active
  • Packaging: Tape & Reel
  • Material: Brass
