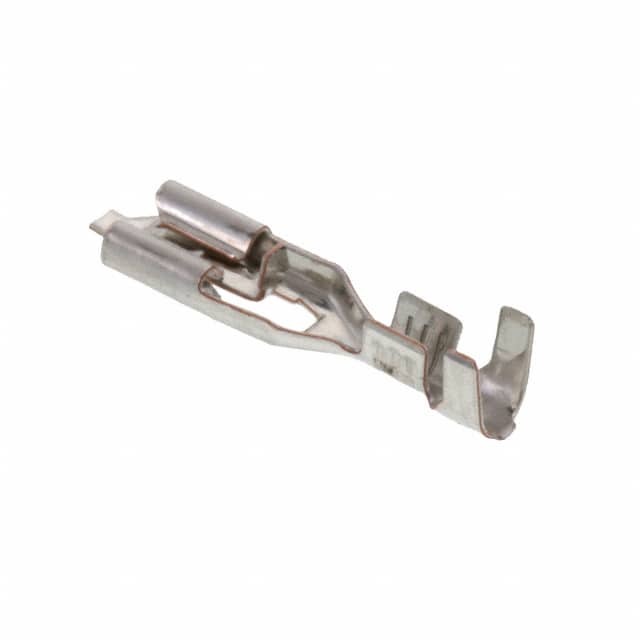

170325-5
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity
Series Mark II
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.850" (21.59mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.075" ~ 0.134" (1.91mm ~ 3.40mm)
Base Product Number 170325
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 905453-170325-5
Ultra Librarian 3D Model Ultra Librarian 170325-5 CAD Model

Description

The TE Connectivity 905453-170325-5 is a quick disconnect connector terminal designed for use with 16-20 AWG wires.

  • Category: Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
  • Terminal Type: Female
  • Package: Bulk package of 6,000 pieces
  • Termination: Crimp termination
  • Contact Finish: Tin contact finish
  • Insulation: Non-insulated
  • Tab Width: 0.187 inches
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Vendor undefined
  • HTSUS code: 8536.90.4000
  • Manufacturer: TE Connectivity
  • Series: Mark II series
  • Status: Currently active
