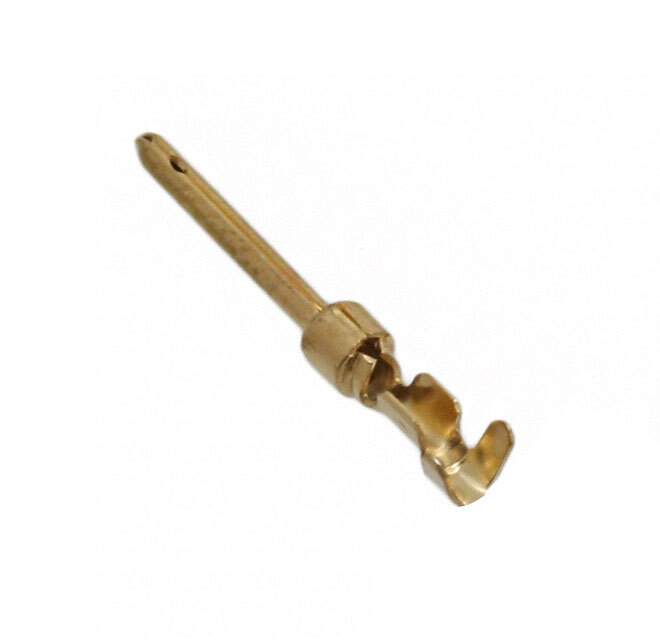

1658539-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 1658539
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-1658539-3,-1658539-3-SI,16585393,A31910
Standard Package 1,000
Win Source Part Number 966634-1658539-3
Ultra Librarian 3D Model Ultra Librarian 1658539-3 CAD Model

Description

The AMPLIMITE HDP-20 series connector is an electronic component that falls under the category of connectors, interconnects>contacts - multi-purpose.

  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Connector Type: pin
  • Wire Gauge: 20-24 AWG
  • Contact Termination: crimp
  • Package: bulk
  • Standard Package: 1,000
  • Alternative Parts: 1658670-2, 66506-3, 66506-9, 09670008177, 09560008177, and 096700071771658539-3
  • MSL Level: 1 (unlimited)
  • REACH Status: vendor undefined
  • HTSUS Code: 8536.90.4000
