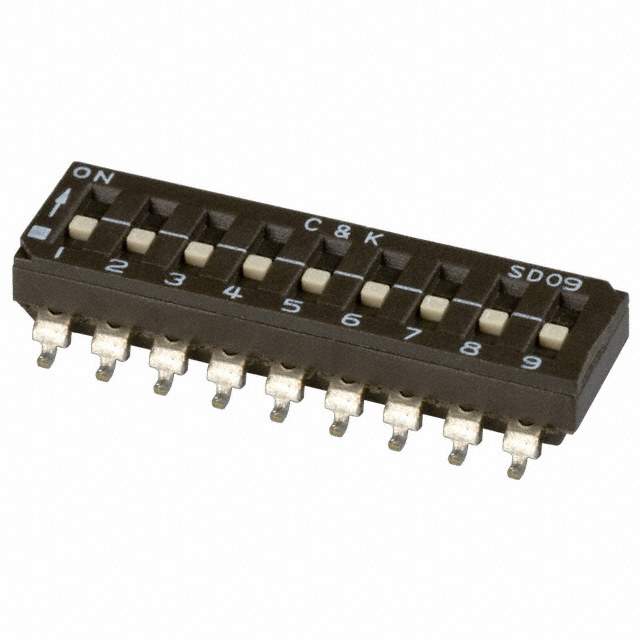

SD09H0SK Real Image
Same model may have multiple batches, images only for reference.

SD09H0SK

Part No SD09H0SK
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 9
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.958" (24.33mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Other Names *SD09H0SK,CKN3061,SD09HOSK
Standard Package 20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233790-SD09H0SK
Ultra Librarian 3D Model Ultra Librarian SD09H0SK CAD Model

Description

The SD series DIP switch with Win Source Part Number 1233790-SD09H0SK is a 9-position switch with a pitch of 0.100" (2.54mm), full.

  • Series: SD
  • Win Source Part Number: 1233790-SD09H0SK
  • Positions: 9
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Tape Seal: Yes
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 25VDC
  • Height Above Board: 0.170" (4.33mm)
  • Length: 0.958" (24.33mm)
  • Package: Tube
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Actuator Level: Flush and Recessed
  • Washable: Yes
  • Operating Temperature: -40°C ~ 85°C
  • Material: Polyphthalamide (PPA)
  • Mounting: SMD (SMT)
