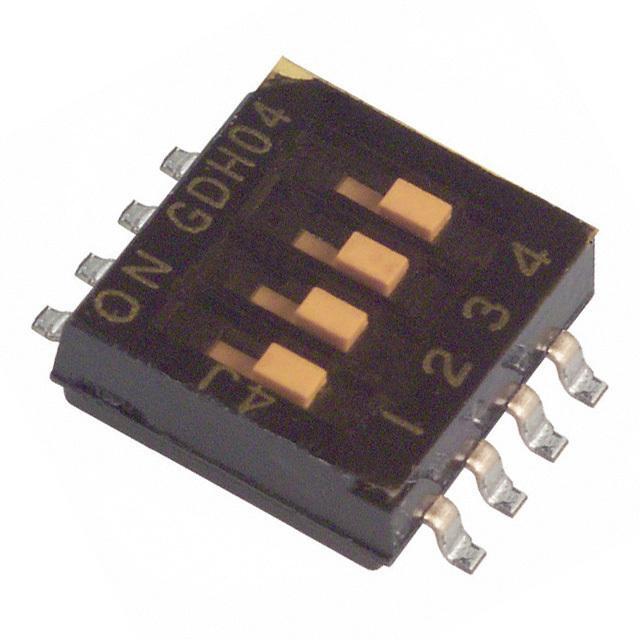

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series GDH
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Operating Temperature Range -30°C ~ 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 775031-1571983-4
Popularity Medium
Supply and Demand Status Limited
Family Name 1571983
Introduction Date March 16, 2005
ECCN EAR99
Country of Origin China, Hong Kong, Japan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 1571983-4 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches GDH series is a 4-position SPST slide switch with a pitch of 0.050" (1.27mm) and a half termination style of gull wing.

  • Voltage rating: 24VDC
  • Current rating: 25mA
  • Electrical life: 1,000 cycles
  • Mechanical life: 1,000 cycles
  • Mounting: SMD
  • Body material: Polyphenylene Sulfide (PPS)
  • Temperature Range: -30°C to 85°C
